Head-Loss Zone in a Duct

Browse this case on GitHub

A step-by-step tutorial for using a head-loss zone in code_saturne: a volume region that mimics the pressure drop of a flow-through device (screen, filter, grille, heat-exchanger bundle, porous baffle) without meshing it. A uniform stream crosses a 0.2 m thick "porous screen" in a duct, and the computed pressure drop matches the prescribed one exactly. The whole setup is done in the GUI: no mesh file, no user routine.

Maintained by Simvia, part of the tutoriel-code_saturne collection.

Learning objectives

After completing this tutorial you will be able to:

  1. Define a volume zone with a geometric criterion and flag it as a head-loss zone.
  2. Set the head-loss tensor (\(K_{xx}\), \(K_{yy}\), \(K_{zz}\)) and understand its convention (per unit length).
  3. Verify the result against the textbook pressure-drop formula.

Prerequisites

Requirement Detail
code_saturne v9.1
Background None: this is one of the simplest possible cases

If code_saturne is not yet installed, build it from the official homepage, pull a ready-to-use Singularity image from the Open Simulation Center, or pull the Simvia Docker image before continuing.

Case files

Inc_Head_Loss_Zone/
├── CASE/
│   └── DATA/
│       └── setup.xml            # pre-configured GUI case
├── FIGURES/                     # figures used in this README
└── README.md

There is no MESH directory (built-in cartesian mesher) and no SRC directory: everything is set in the GUI.

Physical model

A head-loss zone adds a resisting momentum source in a volume region:

\[ \mathbf{S} = -\frac{1}{2}\, \rho\, |\mathbf{u}|\, \mathsf{K}\, \mathbf{u} \]

where \(\mathsf{K}\) is the head-loss tensor in \(\mathrm{m^{-1}}\) (a resistance per unit length of zone). For a uniform stream \(U\) crossing a zone of thickness \(L\) aligned with \(x\), the integrated pressure drop is simply

\[ \Delta p = K_{xx}\, L\, \frac{1}{2} \rho U^2 \]

With the values of this case (\(K_{xx} = 40\ \mathrm{m^{-1}}\), \(L = 0.2\) m, \(\rho = 1.2\ \mathrm{kg\,m^{-3}}\), \(U = 1\ \mathrm{m\,s^{-1}}\)): \(\Delta p = 4.8\) Pa. In practice, \(K\) is calibrated from a manufacturer curve or a correlation (\(\Delta p\) at nominal flow rate divided by \(L\,\frac{1}{2}\rho U^2\)).

Flow parameters

Quantity Symbol Value Source in setup.xml
Fluid (air-like) \(\rho\), \(\mu\) \(1.2\ \mathrm{kg\,m^{-3}}\), \(1.8 \times 10^{-5}\ \mathrm{Pa\,s}\) density, molecular_viscosity
Inlet velocity \(U\) \(1\ \mathrm{m\,s^{-1}}\) inlet/velocity_pressure/norm
Head-loss coefficient \(K_{xx}\) \(40\ \mathrm{m^{-1}}\) head_losses/head_loss
Zone thickness \(L\) \(0.2\) m (\(x = 0.4\) to \(0.6\)) zone selector
Expected pressure drop \(\Delta p\) \(4.8\) Pa derived
Domain, mesh \(1 \times 0.1 \times 0.02\) m, \(200 \times 20 \times 1\) cells mesh_cartesian
Time \(\Delta t\), \(N\) \(5 \times 10^{-3}\) s, \(400\) steps time_parameters

Geometry and boundary conditions

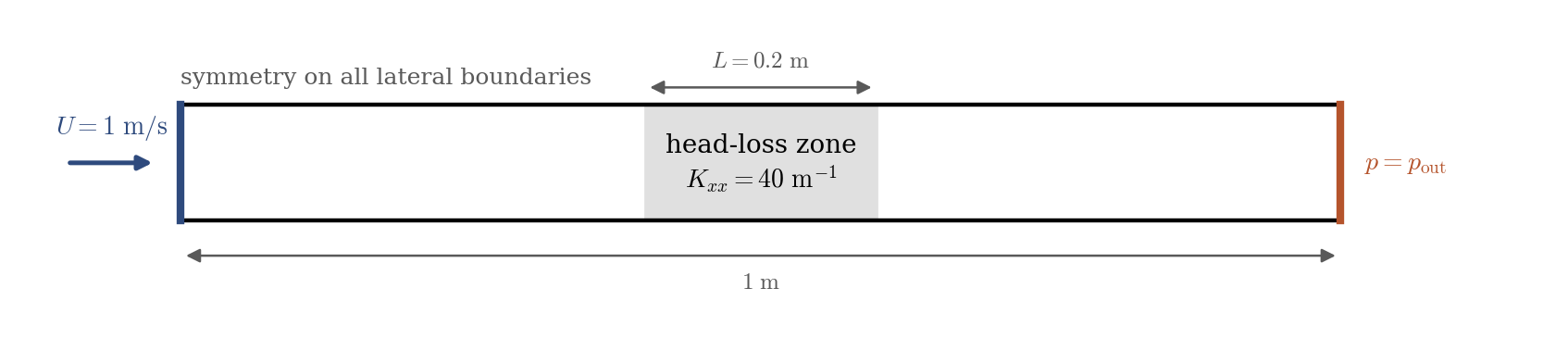

Duct with a velocity inlet, a pressure outlet, symmetry on all lateral boundaries, and a shaded head-loss zone in the middle.
Figure 1: computational domain. All lateral boundaries are symmetries, so the stream stays a uniform plug flow and the measured pressure drop is due to the head-loss zone alone (no wall friction in the balance).

Boundary Location Nature Zone selector
Inlet \(x = 0\) Velocity inlet, \(1\ \mathrm{m\,s^{-1}}\) X0
Outlet \(x = 1\) Free outlet X1
SymY, SymZ lateral faces Symmetry Y0 or Y1, Z0 or Z1

The head-loss zone in the GUI

Two steps:

  1. Volume zones: add a zone (here porous_screen) with the selection criterion box[0.4, -0.01, -0.01, 0.6, 0.11, 0.03] and tick the Head losses nature.
  2. Volume conditions → Head losses: select the zone and set the diagonal coefficients (\(K_{xx} = 40\), \(K_{yy} = K_{zz} = 0\)) in the flow frame; the transformation matrix (identity here) allows a zone whose principal directions are not the coordinate axes.

Note for hand-edited XML: the solver reads every missing node of the head_loss block as zero, including the transformation matrix a11..a33. The GUI always writes the identity matrix; if you write the XML by hand and omit it, the head-loss tensor is silently zero and the zone does nothing.

Numerical setup

Setting Value Rationale
Velocity-pressure coupling SIMPLEC Standard segregated coupling
Time-stepping Fixed \(\Delta t = 5 \times 10^{-3}\) s, \(400\) steps 2 flow-through times, steady well before the end
Turbulence none (laminar) Plug flow with slip boundaries: no shear anywhere
Initialization \(u = U\) everywhere Converges in a handful of iterations
Probes 6 along the axis 2 upstream, 2 inside the zone, 2 downstream

Running the simulation

The commands below start from the tutorial directory:

cd Inc_Head_Loss_Zone/

Option A: Graphical interface

code_saturne gui CASE/DATA/setup.xml &

The GUI opens the pre-configured setup.xml. Review the setup if you wish, then launch the run with the gear (Run) button in the toolbar.

Option B: Command line

The command-line launcher is run from inside the case directory:

cd CASE

# serial (a few seconds)
code_saturne run

Results

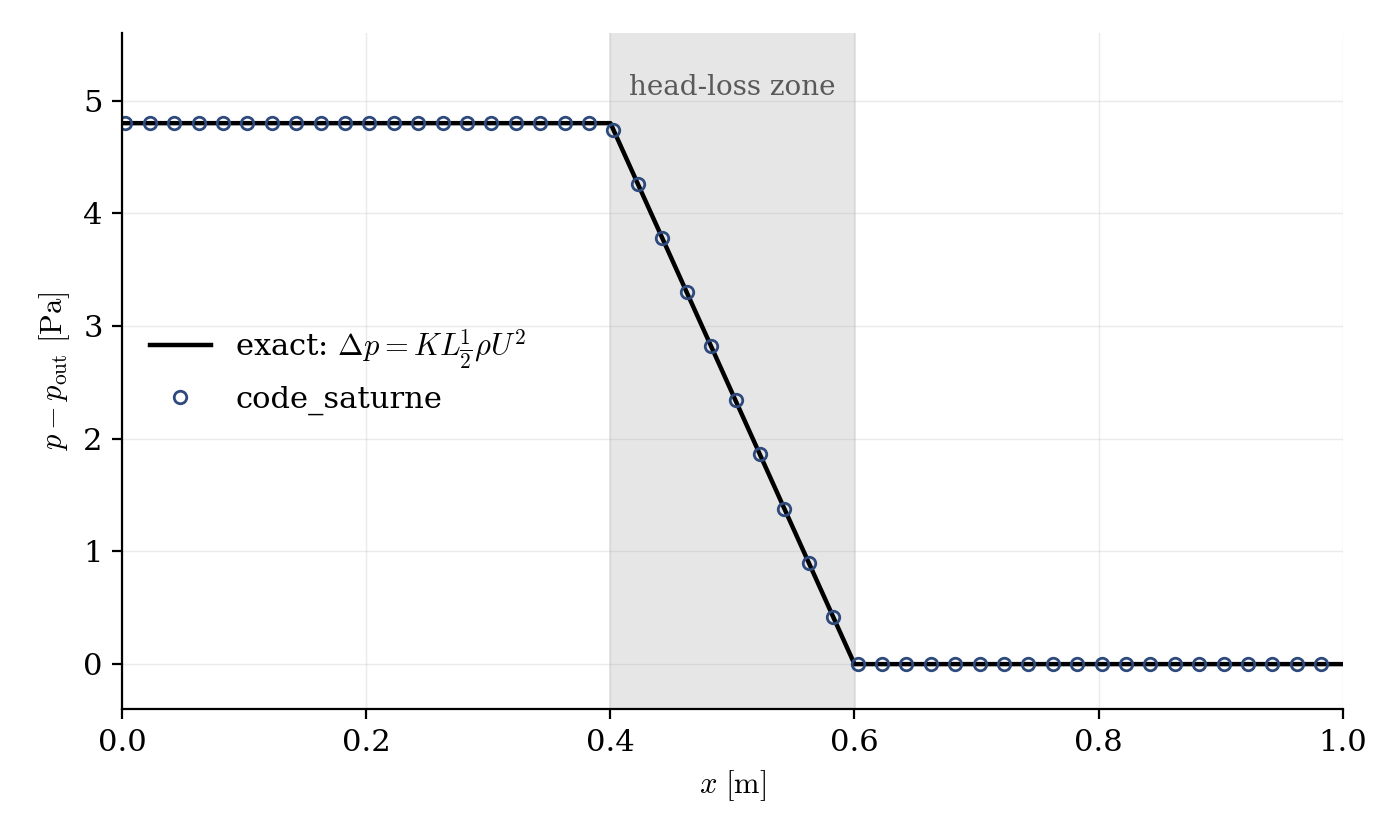

Pressure along the duct: flat plateaus upstream and downstream, linear drop across the shaded head-loss zone, matching the exact formula.
Figure 2: pressure along the duct at steady state. The pressure is flat outside the zone (no wall friction by construction), drops linearly across it, and the total drop matches $K_{xx} L \frac{1}{2}\rho U^2 = 4.8$ Pa; the computed value agrees to machine accuracy, as it must, since the source term is exactly the discretized formula. The interest of the case is the workflow, and the sanity check that the coefficient convention (per unit length) is the one you think.

The probe values at the final step: \(4.800\) Pa on both upstream probes, \(0.000\) on both downstream probes, and the two in-zone probes on the linear ramp. The velocity stays uniform at \(1\ \mathrm{m\,s^{-1}}\) to \(10^{-7}\) (mass conservation in a constant-section duct).

Summary

This tutorial set up a head-loss zone in a duct: a volume zone selected by a geometric criterion, the head-loss tensor set in the GUI (with its per-unit-length convention and its transformation matrix), and the computed pressure drop equal to the prescribed \(K_{xx} L \frac{1}{2}\rho U^2\). This is the standard way to represent screens, filters, grilles or tube bundles without meshing them.

References

  • I.E. Idelchik. Handbook of Hydraulic Resistance, 4th edition, Begell House, 2007 (the classic source of \(K\) values).
  • code_saturne documentation

Authors

Simvia - Questions, remarks and requests are welcome.
