Laminar Backward-facing Step

Browse this case on GitHub

A step-by-step tutorial for simulating the incompressible laminar internal flow in a channel over a backward-facing step with code_saturne. Results are verified against reference data from the Gartling.

Maintained by Simvia, part of the tutoriel-code_saturne collection.

Learning objectives

After completing this tutorial you will be able to:

  1. Set up an incompressible, steady Laminar simulation in code_saturne from the GUI.
  2. Apply inlet / outlet / symmetry / no-slip wall boundary conditions on a structured mesh.
  3. Drive a steady solution with local (pseudo) time-stepping and the SIMPLEC coupling.
  4. Run the case in serial or parallel and locate the solver outputs (log, probes, EnSight fields).

Prerequisites

Requirement Detail
code_saturne v9.1
Background Basic notions of RANS turbulence modelling and boundary-layer theory

If code_saturne is not yet installed, build it from the official homepage, pull a ready-to-use Singularity image from the Open Simulation Center, or pull the Simvia Docker image before continuing.

Case files

Inc_Laminar_Step/
├── CASE/
│   ├── DATA/
│   │   └── setup.xml          # pre-configured GUI case
├── MESH/
│   └── mesh_backward_step_481x65.msh
├── FIGURES/                   # figures used in this README
└── README.md

Physical model

The flow is steady, incompressible and laminar, governed by the Navier-Stokes equations:

\[ \nabla\cdot\mathbf{u}=0,\qquad \rho\,(\mathbf{u} \cdot \nabla)\,\mathbf{u} = -\nabla p + \mu\,\nabla^{2}\mathbf{u}\]

The case is run with the incompressible solver, which is the natural choice for this low-speed flow (\(U_\infty=1\ \mathrm{m\,s^{-1}}\), Mach number effectively zero).

Flow parameters

Quantity Symbol Value Source in setup.xml
Density \(\rho\) \(1.0\ \mathrm{kg\,m^{-3}}\) physical_properties/density
Dynamic viscosity \(\mu\) \(0.00125\ \mathrm{Pa\,s}\) molecular_viscosity
Kinematic viscosity \(\nu=\mu/\rho\) \(0.00125\ \mathrm{m^2\,s^{-1}}\) derived
Mean inlet velocity \(U_\infty\) \(1.0\ \mathrm{m\,s^{-1}}\) (parabolic profile, peak \(1.5\)) inlet/velocity_pressure/norm_formula
Reference length \(L\) \(1\ \mathrm{m}\) (geometry)
Reynolds number \(Re_L\) \(800\) derived (see below)

The Reynolds number is recovered directly from the prescribed properties:

\[ Re_L=\frac{\rho\,U_\infty\,L}{\mu} =\frac{1.0\times 1.0\times 1}{0.00125}\approx 800. \]

Geometry and boundary conditions

The domain is a channel \(0\le x\le 15\ \mathrm{m}\) long and \(1\ \mathrm{m}\) tall (\(-0.5\le y\le 0.5\)). At the inlet (\(x=0\)) the flow enters only through the upper half of the channel (\(0\le y\le 0.5\)); the lower half (\(-0.5\le y\le 0\)) is the backward-facing step face. The inlet carries a parabolic velocity profile $\(u(y) = 24.0 \, y\,(0.5 - y), \quad 0 \leq y \leq 0.5,\)$ whose mean over the inlet height is \(U_\infty=1\ \mathrm{m\,s^{-1}}\) (peak \(1.5\ \mathrm{m\,s^{-1}}\) at \(y=0.25\)). The two spanwise (XY) planes carry a symmetry condition, so the computation is effectively two-dimensional.

Boundary Location Nature Prescribed value Zone id
inlet upper-half left (\(x=0\), \(0\le y\le0.5\)) Inlet parabolic profile, \(U_\infty=1.0\ \mathrm{m\,s^{-1}}\) (mean) 100
outlet right (\(x=15.0\)) Outlet \(\partial\mathbf{u}/\partial n=0\), \(p\) Dirichlet 200
wall1 top (\(y=0.5\)) No-slip wall \(\mathbf{u}=\mathbf{0}\) 1000
wall2 bottom (\(y=-0.5\)) No-slip wall \(\mathbf{u}=\mathbf{0}\) 1001
wall3 step face, lower-half left (\(x=0\), \(-0.5\le y\le0\)) No-slip wall \(\mathbf{u}=\mathbf{0}\) 1002
front spanwise plane (\(z=0\)) Symmetry (none) 600
back spanwise plane (\(z=1\)) Symmetry (none) 601

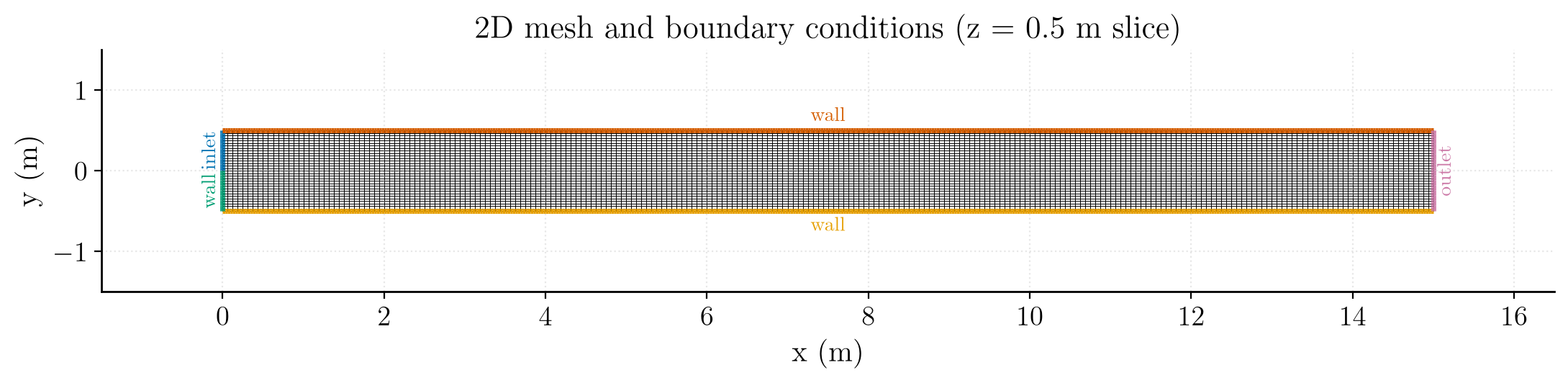

2D mesh of the Laminar Backward facing step domain colored by boundary condition: inlet (left), outlet (pink), symmetry (front and back) and no-slip wall (bottom, upper and lower-half left).
Figure 1: Mesh and boundary conditions (z = 0.5 m slice): inlet (blue), outlet (pink), and no-slip wall (green/yellow/orange).

The computational mesh for the backward-facing step is composed of quadrilaterals with 481 nodes in the x-direction and 65 nodes in the y-direction. The spacing of the nodes is uniform in the x- and y-directions. The domain is 15 channel heights in width. The two spanwise planes (front/back) carry a symmetry condition, so the computation is effectively two-dimensional.

Numerical setup

Setting Value Rationale
Velocity-pressure coupling SIMPLEC Robust segregated coupling for steady incompressible flow
Time-stepping Local (pseudo) time step Accelerates convergence to steady state by using a per-cell time step
Reference time step \(\Delta t_\mathrm{ref}=10^{-3}\ \mathrm{s}\) Seed value, bounded by min/max factors \([0.1,\,1000]\)
Max Courant number 30 Caps the local time step away from the wall
Iterations 500 Steady state reached well within this budget
Initialization \(\mathbf{u}=(U_\infty,0,0)\) Freestream start with a norm user law in the inlet

Two monitoring probes track convergence inside channel at \(x=5.0 \mathrm{m}\) , \(y=-0.5 \mathrm{m}\) and \(x=9.0\ \mathrm{m}\), \(y=0 \mathrm{m}\). They are sensitive indicators of when the recirculation behind the step has reached steady state.

Running the simulation

The commands below start from the tutorial directory:

cd Inc_Laminar_Step/

Option A: Graphical interface

code_saturne gui CASE/DATA/setup.xml &

The GUI opens the pre-configured setup.xml. Review the setup if you wish, then launch the run with the gear (Run) button in the toolbar. To run in parallel, set the number of processes under Calculation management > Performance settings before launching.

Option B: Command line

The command-line launcher is run from inside the case directory:

cd CASE

# serial
code_saturne run

# parallel (e.g. 8 MPI ranks)
code_saturne run --n 8

Each run creates a time-stamped directory CASE/RESU/<YYYYMMDD-HHMM>/ containing:

  • run_solver.log: solver log and residual history,
  • monitoring/: probe time series (probes_*.csv),
  • postprocessing/: volume and boundary fields in EnSight Gold format.

Results and verification

The figures below illustrate the converged solution and compare it against reference data from the literature and work of Gartling. The quantity of interest is the streamwise velocity profile \(u/U_\infty\) across the channel height, extracted at \(x=7\ \mathrm{m}\) and \(x=15\ \mathrm{m}\).

Velocity profile 1

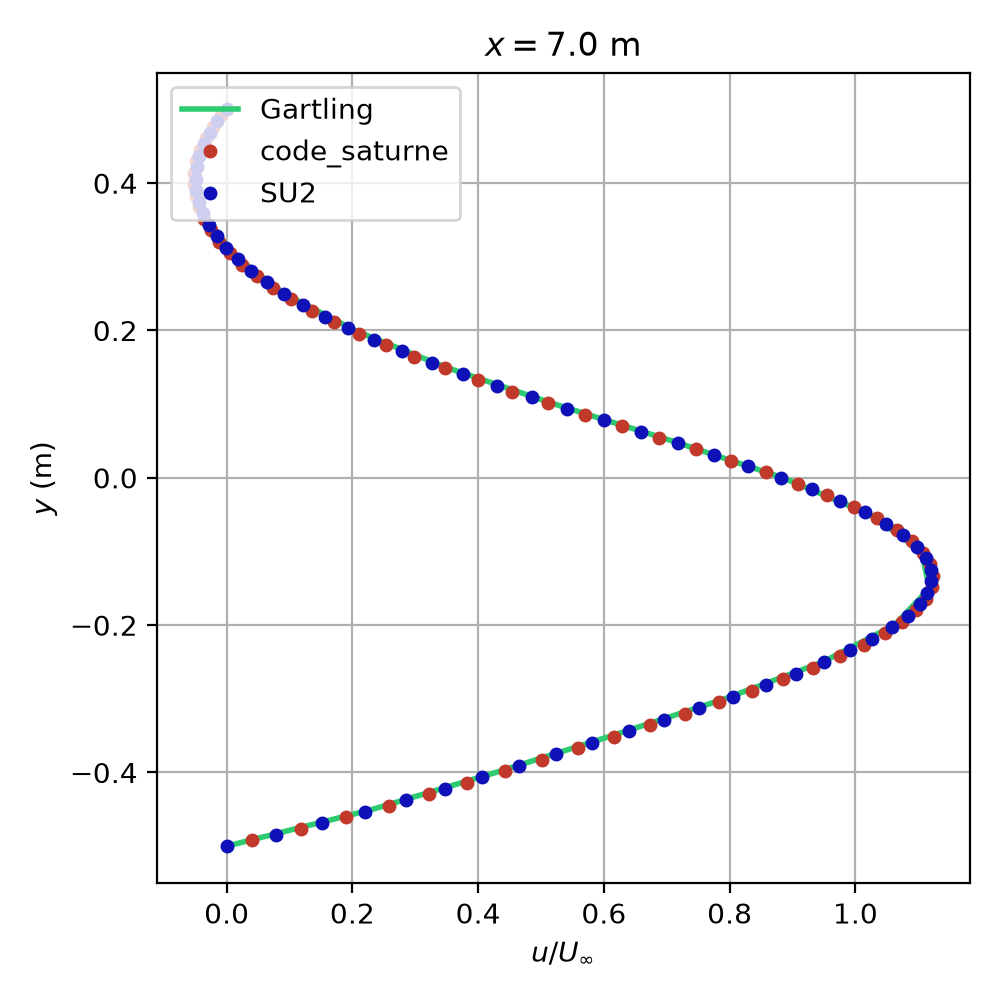

Velocity profile u/Uinf versus wall-normal distance at x = 7 m: code_saturne overlays the Gartling reference exactly.
Figure 2: Velocity profile u/Uinf versus wall-normal distance at x = 7 m: code_saturne overlays the Gartling reference exactly.

Velocity profile 2

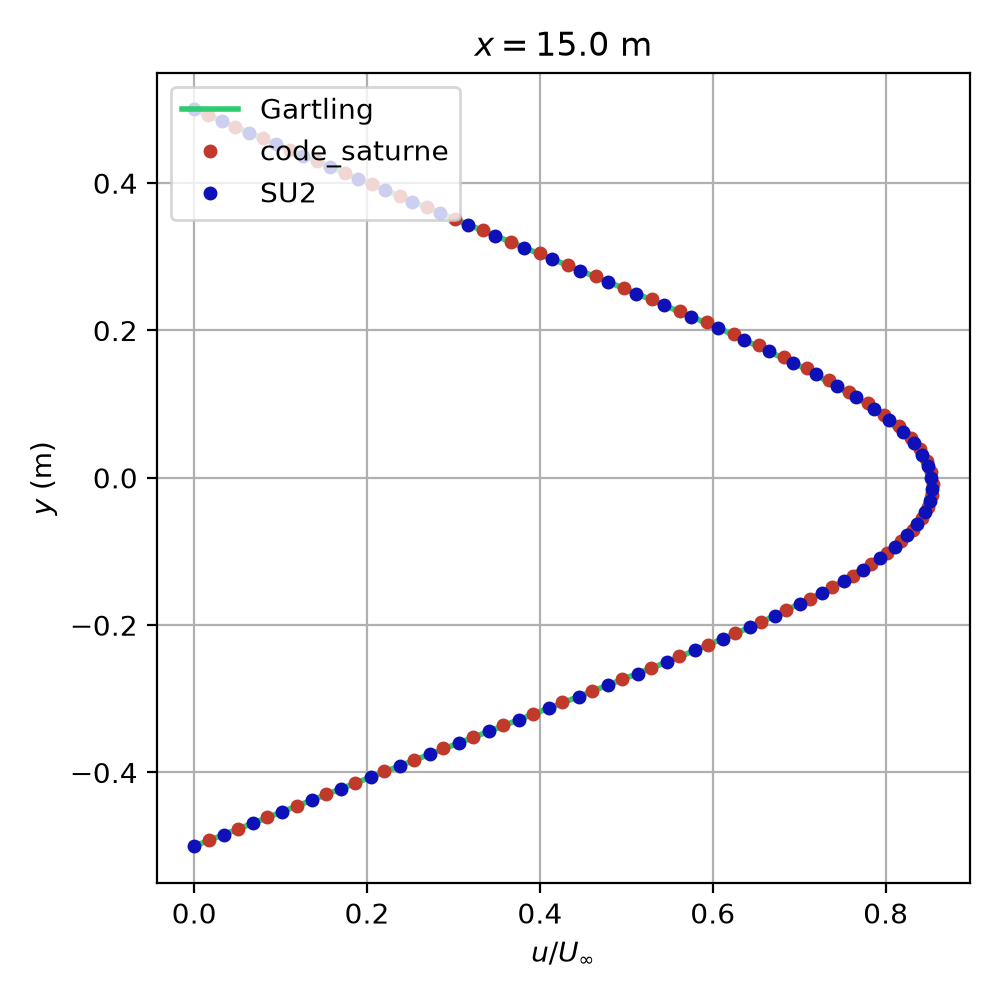

Velocity profile u/Uinf versus wall-normal distance at x = 15 m: code_saturne overlays the Gartling reference exactly.
Figure 3: Velocity profile u/Uinf versus wall-normal distance at x = 15 m: code_saturne overlays the Gartling reference exactly.

The velocity profiles match the reference, confirming a correctly resolved laminar simulation.

Velocity profile in Paraview

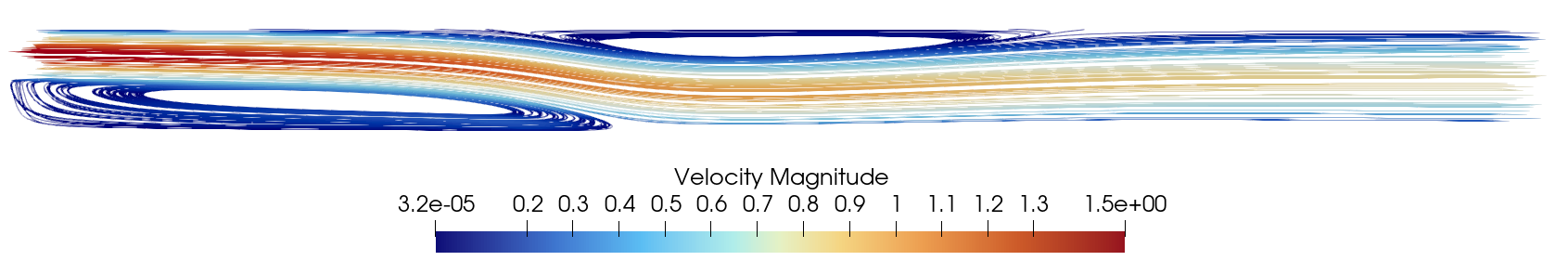

Velocity profile u/Uinf in paraview visualized.
Figure 4: Velocity field u/Uinf shown in ParaView with streamlines.

Summary

This tutorial set up and validated an incompressible Laminar Backward facing Step simulation in code_saturne. The velocity profiles match the Gartling reference across the channel, and the user norm-formula imposes the parabolic inlet profile on the upper half of the inlet. This case is a good starting point for more complex incompressible CFD simulations.

References

  • A test problem for outflow boundary conditions—flow over a backward-facing step Resource, Flow over a backward-facing step
  • Gartling D.K., A test problem for outflow boundary conditions – flow over a backward- facing step, International Journal of Numerical Methods in Fluids, 11, 953-967, 1990.
  • code_saturne documentation
