Counter-current Cooling Tower: Evaporative Cooling (ctwr)

Browse this case on GitHub

A step-by-step tutorial for the cooling tower module (ctwr) of code_saturne. A cooling tower rejects heat by evaporation: warm water is sprayed over a packing (fill) and trickles down while air is blown up through it; part of the water evaporates, cooling the remaining liquid and warming and humidifying the air. The showcased feature is the ctwr module with an exchange (packing) zone and Poppe's evaporation model, on a simple counter-current tower.

Maintained by Simvia, part of the tutoriel-code_saturne collection.

Learning objectives

After completing this tutorial you will be able to:

1. Activate the cooling tower model (CS_COOLING_TOWERS, Poppe evaporation) and the dilatable (variable-density) algorithm.
2. Define a packing exchange zone with cs_ctwr_define (counter-current, injected water temperature and flow rate, exchange law).
3. Set humid-air boundary conditions (velocity, temperature, humidity) for the air inlet and outlet.
4. Read the coupled result: air warms and humidifies while the water cools across the packing.

Prerequisites

Requirement	Detail
code_saturne	v9.1
Tutorials	Atmo_Humid_Cloud (humid air, saturation), any inlet/outlet case

If code_saturne is not yet installed, build it from the official homepage, pull a ready-to-use Singularity image from the Open Simulation Center, or pull the Simvia Docker image before continuing.

Case files

Ctwr_Counterflow_Tower/
├── CASE/
│   ├── DATA/setup.xml                    # GUI: ctwr model, k-epsilon, mesh, BCs, time
│   └── SRC/
│       ├── cs_user_parameters.cpp        # humid-air thermodynamic properties, evaporation model
│       ├── cs_user_zones.cpp             # packing exchange zone (cs_ctwr_define)
│       ├── cs_user_boundary_conditions.cpp   # inlet values of the model variables
│       └── cs_user_initialization.cpp    # initial humid-air state
├── FIGURES/
└── README.md

No mesh file: the tower slice is built by the built-in cartesian mesher. Most of the case is set through the GUI (setup.xml): the cooling tower model, the turbulence model, the mesh, the gravity and the standard boundary conditions (inlet velocity and temperature, outlet, walls, symmetry). Only what the v9.1 GUI does not cover stays in C: the packing exchange zone (built only by cs_ctwr_define), the detailed humid-air properties and the evaporation model, the inlet values of the model variables (humidity, rain, packing liquid, which the solver does not read from the GUI here), and the initial state.

Physical model

The cooling tower module solves the humid air (velocity, temperature, water content ym_water) coupled to a liquid water field in the packing. In the packing zone, an exchange law transfers heat and mass between the falling water and the rising air: some water evaporates, which

• cools the liquid water (latent heat taken from it),
• warms and humidifies the air.

The evaporation rate follows Poppe's model. The exchange zone is counter-current: water is injected at the top of the packing (here at \(36\)°C) and falls, air enters at the bottom and rises, so the hottest water meets the most humid air at the top and the coolest water meets the driest air at the bottom, maximizing the exchange.

How the packing is modelled. The packing (fill) is not resolved geometrically: there is no honeycomb in the mesh. It is a sub-grid exchange model attached to a volume zone (here the band \(3 \le z \le 7\) m, declared with cs_ctwr_define). Inside that zone the model carries the liquid water as extra fields (its mass fraction and enthalpy) descending counter-current, and adds source terms coupling air and water through the evaporation law: the air gains heat and vapour, the water loses heat. The exchange intensity is set by the injected water flow rate, its temperature, the contact surface and the transfer law constants (\(\beta_{x0}\) and its exponent), not by a resolved geometry.

Is this a nuclear-plant cooling tower? The principle is the same: the big hyperbolic towers are counter-current wet cooling towers with a fill and evaporative cooling. But those are natural draft (the ~150 m hyperbolic chimney creates the airflow by buoyancy), whereas this case is a small forced-draft 2D slice (the air velocity is imposed at the inlet) that demonstrates the fill exchange, not the full tower with its chimney and plume.

Setup parameters

Quantity	Value
Tower slice	\(2 \times 10\) m (packing between \(3\) and \(7\) m)
Air inlet	\(0.8\) m/s upward, \(15\)°C, \(6\) g/kg (RH \(\approx 60\%\))
Injected water	\(36\)°C, \(2\) kg/s over the packing
Evaporation model	Poppe
Turbulence	\(k\)-\(\varepsilon\)

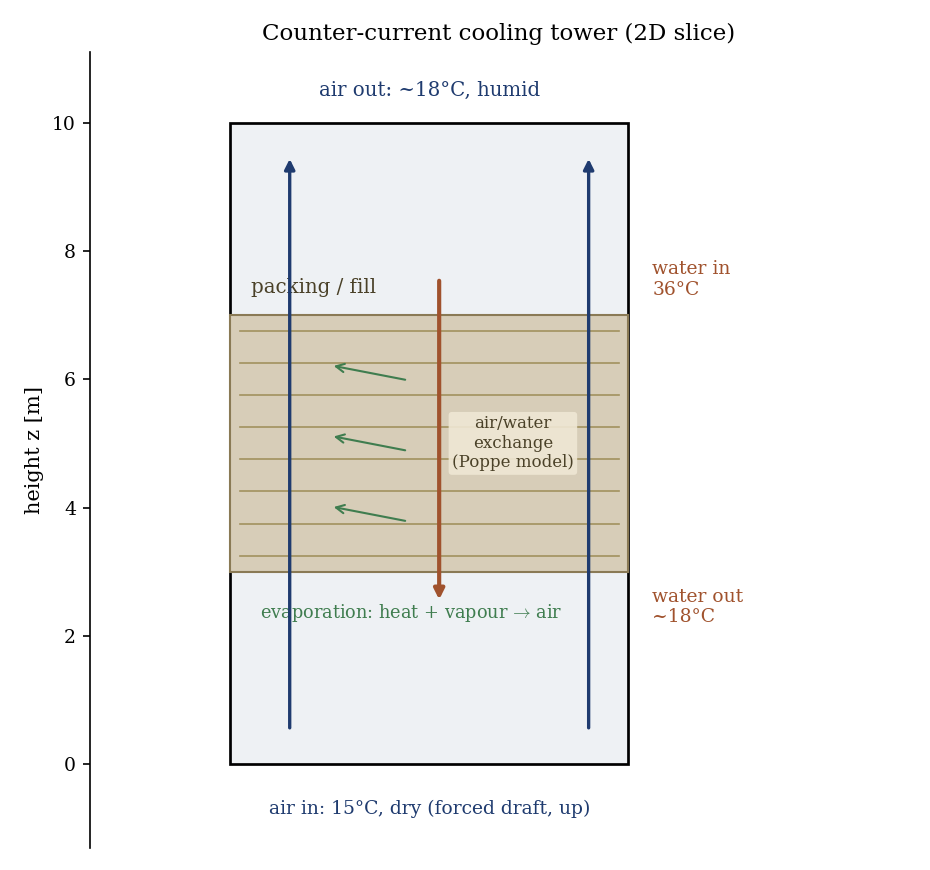

Figure 1: the counter-current tower slice. Air rises (blue), water falls through the packing (red); in the fill, the sub-grid exchange (green) moves heat and vapour from the water to the air. Air enters at 15°C dry and leaves ~18°C humid; water enters at 36°C and leaves ~18°C.

Geometry and boundary conditions

A 2D vertical slice, \(z\) the vertical. The bottom (Z0) is the air inlet (upward velocity, \(15\)°C, prescribed humidity), the top (Z1) is the outlet, the side walls (X0/X1) are no-slip and the spanwise faces (Y0/Y1) are symmetry. The packing occupies \(3 \le z \le 7\) m, where cs_ctwr_define injects the water.

Numerical setup

The cooling tower model is selected in the GUI (atmospheric model ctwr). The dilatable algorithm (idilat = 2) and the humid-air properties (heat capacities, latent heat, liquid density) are set in cs_user_parameters.cpp with the reference ctwr values, and the dilatable/variable-density formulation carries the buoyancy from temperature and humidity. The run advances to a near-steady state (\(2000\) steps).

Running the simulation

cd CASE
code_saturne run --n 4

The mesh is generated internally. The run writes CASE/RESU/<id>/ with the humid-air temperature and humidity, the packing liquid temperature, the evaporation rate and the exchanged thermal power.

Results

The counter-current exchange is clear in the vertical profiles. Rising through the packing, the air warms from \(15\) to about \(18\)°C and its water content grows from \(6\) to about \(11\) g/kg (relative humidity from \(\approx 60\) to \(\approx 80\%\)). The water cools from its \(36\)°C injection at the top of the packing to about \(18\)°C at the bottom: roughly \(17\)°C of cooling, the purpose of the tower.

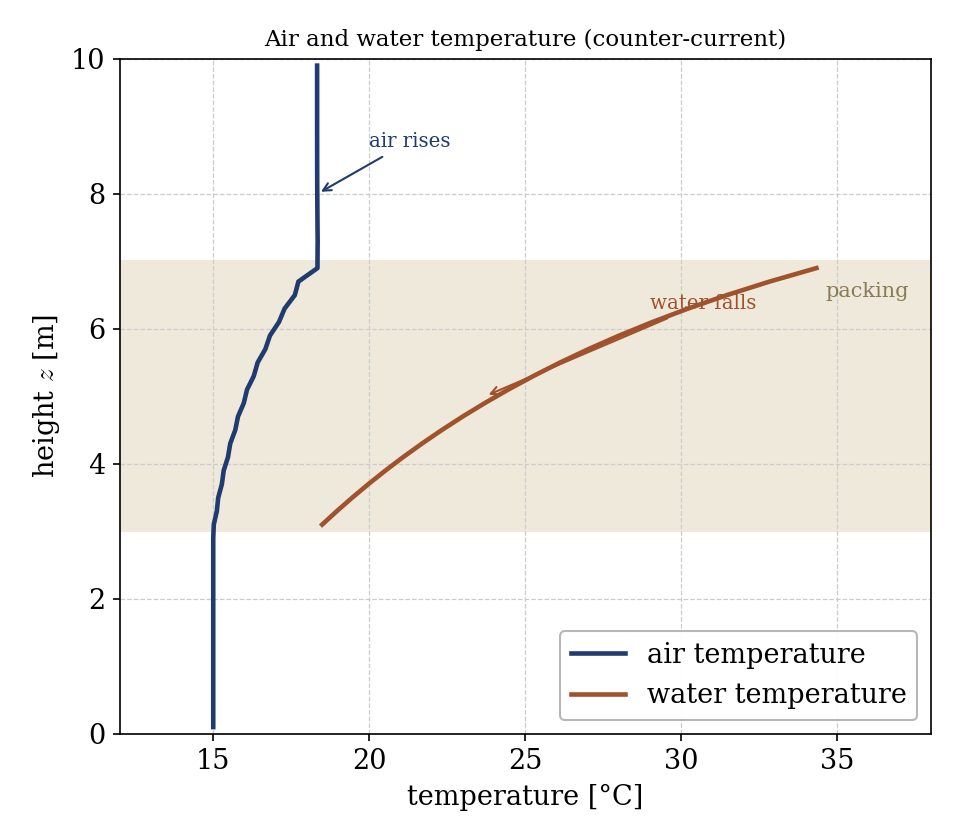

Figure 2: air and water temperature versus height. The air (rising) warms from 15 to ~18°C; the water (falling through the packing) cools from 36°C at the top to ~18°C at the bottom, the counter-current signature.

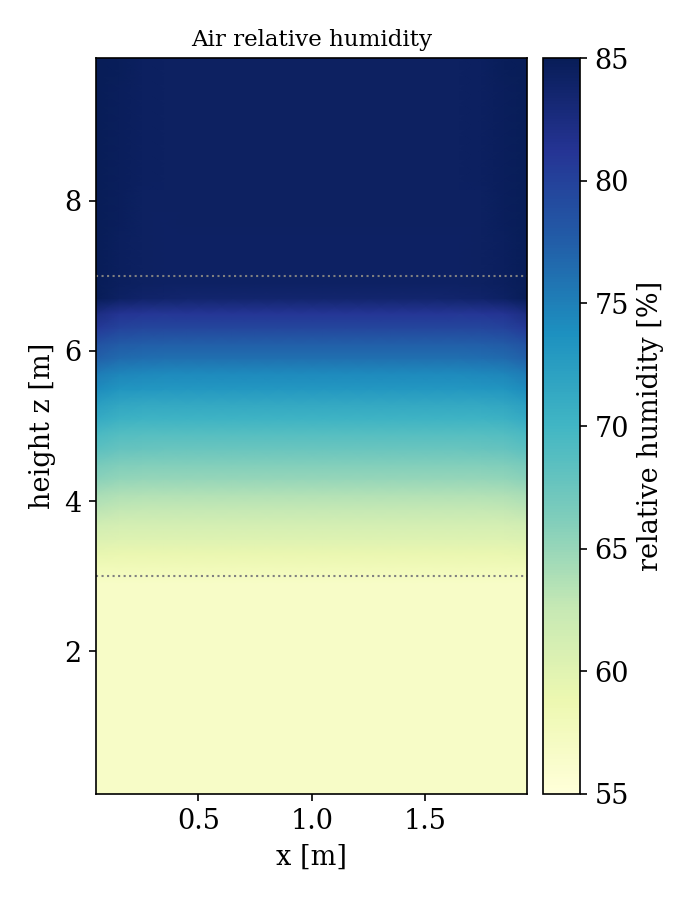

Figure 3: air relative humidity, rising from the inlet value at the bottom to near saturation at the top as the air picks up evaporated water.

This is a demonstration of the cooling tower module rather than a validated case: the amount of cooling depends on the packing exchange law, the water flow rate and the air flow, which are chosen here to give a clear, stable exchange.

Summary

This tutorial ran a counter-current cooling tower with the ctwr module: humid air rising through a packing exchanged heat and mass with water injected at \(36\)°C, cooling the water by about \(17\)°C and warming and humidifying the air. The lesson that carries beyond this case: the cooling tower module couples the humid-air flow to a liquid water field through an evaporative exchange law in the packing zone, the basis for modelling industrial wet cooling towers.

References

• M. Poppe, H. Rögener. Berechnung von Rückkühlwerken, VDI-Wärmeatlas, 1991.
• J. C. Kloppers, D. G. Kröger. A critical investigation into the heat and mass transfer analysis of counterflow wet-cooling towers, Int. J. Heat Mass Transfer 48, 765-777, 2005.
• code_saturne documentation

Authors

Simvia. Questions, remarks and requests are welcome.
