Rough Walls (Sand-Grain Roughness and the Roughness Function)

Browse this case on GitHub

Real walls are not smooth. Corroded pipes, concrete channels, ship hulls and weathered blades all carry a surface texture far too small to mesh and far too consequential to ignore: roughness thickens the wall layer, raises the friction, and can double the pressure drop of a duct. Rather than resolve the grains, a wall function represents them statistically, through a single length that characterises the surface.

The mechanism is simple to picture. A rough wall obeys the same logarithmic law as a smooth one, displaced downwards: the fluid near the surface is held back, the velocity gradient steepens, and the friction rises. That displacement is called the roughness function, and reproducing it is the whole job of a rough-wall model.

This tutorial puts a roughness on the walls of a turbulent channel, sweeps it from barely perceptible to fully rough, and measures the displacement at each step. Two setup subtleties decide whether the case does what you intended, and both fail silently: the number you type is not the grain height, and not every wall function uses it.

Maintained by Simvia, part of the tutoriel-code_saturne collection.

Learning objectives

After completing this tutorial you will be able to:

1. Set a wall roughness on a wall boundary condition, knowing that the value requested is the roughness length \(z_0\) and not the sand-grain height \(k_s\).
2. Choose a wall function that actually applies the roughness, and recognise the ones that accept the value and ignore it.
3. Measure the roughness function over a sweep of roughness heights, and compare it with Nikuradse's fully rough asymptote and the Colebrook-White correlation.

Prerequisites

Requirement	Detail
code_saturne	v9.1
Tutorials	Inc_Turbulent_Channel (periodic channel driven by a body force), Inc_Turbulent_Bend_Wallfunctions (wall functions)
Background	Wall-bounded turbulence and the law of the wall

If code_saturne is not yet installed, build it from the official homepage, pull a ready-to-use Singularity image from the Open Simulation Center, or pull the Simvia Docker image before continuing.

Case files

Inc_Rough_Wall_Channel/
├── CASE/
│   ├── DATA/
│   │   └── setup.xml                 # pre-configured GUI case, roughness included
│   └── SRC/
│       └── cs_user_source_terms.cpp  # constant body force driving the channel
├── FIGURES/                          # figures used in this README
└── README.md

The channel is built by the internal Cartesian mesher from setup.xml, so there is no mesh file to ship.

Physical model

The flow is incompressible and fully turbulent between two parallel rough walls, closed with the standard k-\(\varepsilon\) model used with wall functions. That pairing is not incidental: roughness is a wall-function property, so the near-wall region must be modelled rather than resolved.

The case is written in wall units and driven by a constant body force rather than by an imposed flow rate. This is the choice that makes the study clean. At equilibrium the force is balanced by the wall friction, so the friction velocity is the same in every run whatever the roughness. The bulk velocity becomes the output, and the drop in bulk velocity from one run to the next is the roughness function itself, with no wall shear stress to extract and no normalisation to argue about.

Parameter	Value	Source
Density \(\rho\)	1	setup.xml: density
Dynamic viscosity \(\mu\)	\(2\times10^{-4}\)	setup.xml: molecular_viscosity
Half-height \(h\)	1	mesh
Body force \(f_x\)	1	cs_user_source_terms.cpp
Friction Reynolds number \(Re_\tau\)	5000	\(\rho u_\tau h/\mu\)

Geometry and boundary conditions

The domain is a short slice of plane channel, made independent of \(x\) by streamwise periodicity, so a handful of cells in the flow direction is enough. The wall-normal spacing is deliberately uniform and coarse: with wall functions the first cell must sit in the logarithmic layer, not resolve the viscous sublayer beneath it.

Boundary	Type	Condition
walls (\(y=\pm h\))	Wall	No slip, roughness length \(z_0\)
\(x\) planes	Periodicity	Translation over \(2h\)
sym (\(z\) planes)	Symmetry	Quasi-2D

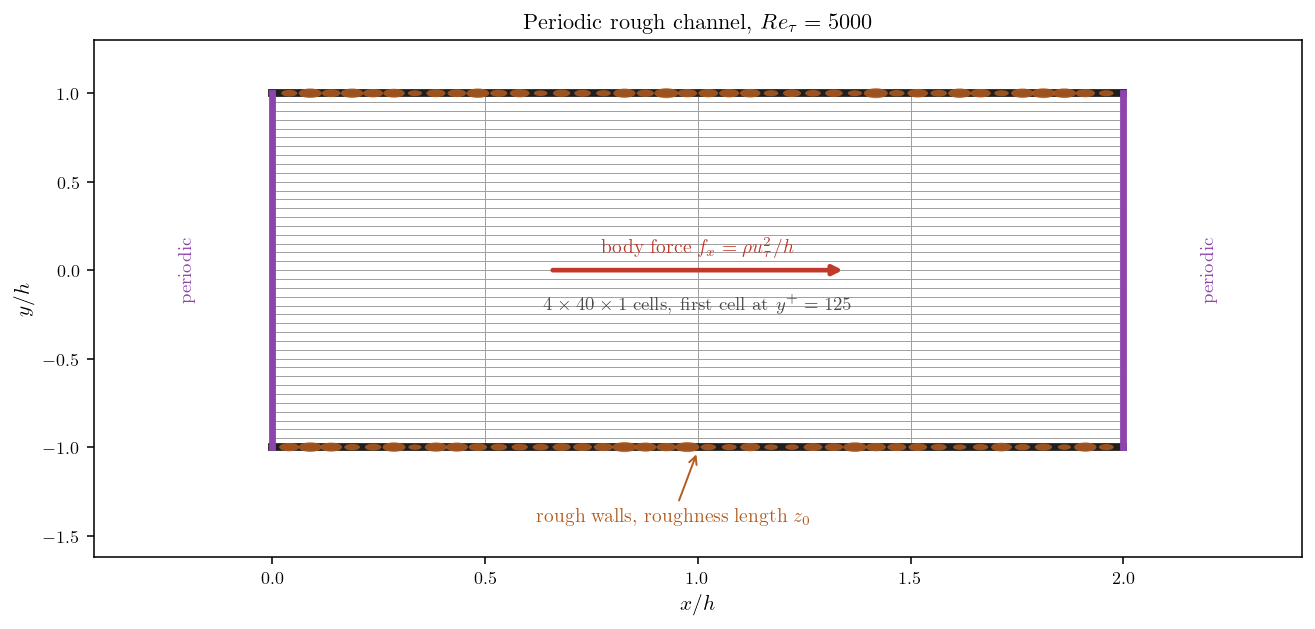

Figure 1: The channel. Periodicity removes the need for an inlet and an outlet, and the body force fixes the friction velocity by construction.

The rough wall

The roughness is an attribute of the wall boundary condition, set in the GUI under the wall's velocity panel. No user routine is involved:

<wall label="walls" field_id="none">
  <velocity_pressure choice="off">
    <dirichlet name="velocity" component="0">0</dirichlet>
    <dirichlet name="velocity" component="1">0</dirichlet>
    <dirichlet name="velocity" component="2">0</dirichlet>
    <roughness>5.631170736e-04</roughness>
  </velocity_pressure>
</wall>

The value is a length scale, not a grain height

Here is the first trap, and it costs a factor of thirty-five. The number entered is the roughness length \(z_0\), the height at which the rough logarithmic profile extrapolates to zero velocity. The sand-grain height \(k_s\), which is what tables of surface roughness quote, is a different and much larger quantity. The solver converts between them in cs_wall_functions.cpp:

cs_real_t sg_rough = rough_d * exp(cs_turb_xkappa * cs_turb_cstlog_rough);

With the constants of the code, \(\kappa=0.42\) and \(C_{rough}=8.5\), this gives

\[k_s = z_0\,e^{\kappa C_{rough}} \simeq 35.5\,z_0\]

so a surface quoted at one millimetre of sand-grain roughness must be entered as some thirty microns. Type the grain height directly and the wall becomes thirty five times rougher than intended, quietly.

Not every wall function uses it

The second trap lives in the turbulence panel. Whether the roughness reaches the velocity profile depends on the wall function, and the two pieces of source that decide this do not agree with each other.

<wall_function>	Name	Roughness
0, 1, 4, 7	disabled, power law, scalable, all \(y^+\)	rejected, the field is never created
2	one scale log law	accepted and silently ignored
3	two scales log law	applied
5	two scales Van Driest	applied
6	two scales smooth/rough	applied (used here)

The GUI reader filters out only the first group, so a roughness entered alongside the one-scale log law is stored, written to the setup, and never handed to the routine that would use it. Running this case that way gives a bulk velocity indistinguishable from a smooth wall. Nothing in the log mentions it.

Options 3 and 6 deserve a word too, because they are the same thing: both dispatch to the same routine, which reduces to the smooth log law when the roughness is zero. The default two-scales log law therefore already handles rough walls, and option 6 mainly makes the intent explicit.

What the wall function does

Roughness and viscosity enter the log law side by side, in the same denominator:

\[u^+ = \frac{1}{\kappa} \ln\!\left(\frac{(y+z_0)\,u_k}{\nu + \alpha\,k_s\,u_k}\right) + C_{smooth}\]

When the grains are small compared with the viscous length the first term dominates and the smooth law is recovered; when they are large the second takes over and the law becomes fully rough. One expression covers both regimes, with nothing to switch by hand. Written as a displacement from the smooth law, it amounts to

\[\Delta U^+ = \frac{1}{\kappa}\ln\!\left(1 + \alpha\,k_s^+\right), \qquad \alpha = e^{-\kappa\,(C_{rough}-C_{smooth})} \simeq 0.25\]

This is the expression the sweep below measures, and it is worth keeping in mind: it tends to the smooth wall as the grains vanish, and to the fully rough law as they grow.

Numerical setup

Setting	Value
Turbulence model	standard k-\(\varepsilon\)
Wall function	6, two scales smooth/rough
Mesh	\(4\times40\times1\) cells, first cell at \(y^+=125\)
Roughness length \(z_0\) (shipped case)	\(5.6312\times10^{-4}\), that is \(k_s^+=100\)
Steady strategy	Local (pseudo) time-stepping
Iterations	4000

Running the simulation

From the tutorial directory:

cd CASE
code_saturne run

Each run takes a few seconds, which is what makes a sweep affordable. To reproduce the one below, edit <roughness> in DATA/setup.xml and run again, once per value. The roughness length for a target \(k_s^+\) follows from the conversion above,

\[z_0 = \frac{k_s^+}{Re_\tau}\,e^{-\kappa C_{rough}}\]

and the smooth reference is obtained by removing the <roughness> line altogether.

Results and verification

Only the bulk velocity is measured. Since the friction velocity is fixed by the body force, it carries everything: the roughness function is its drop from the smooth run, and the friction factor follows from it directly. Reading the displacement off the bulk velocity assumes the profile moves as a rigid block, which is the classical outer-layer similarity hypothesis; comparing the profiles point by point confirms it, well within the differences being measured.

The log law shifts downwards

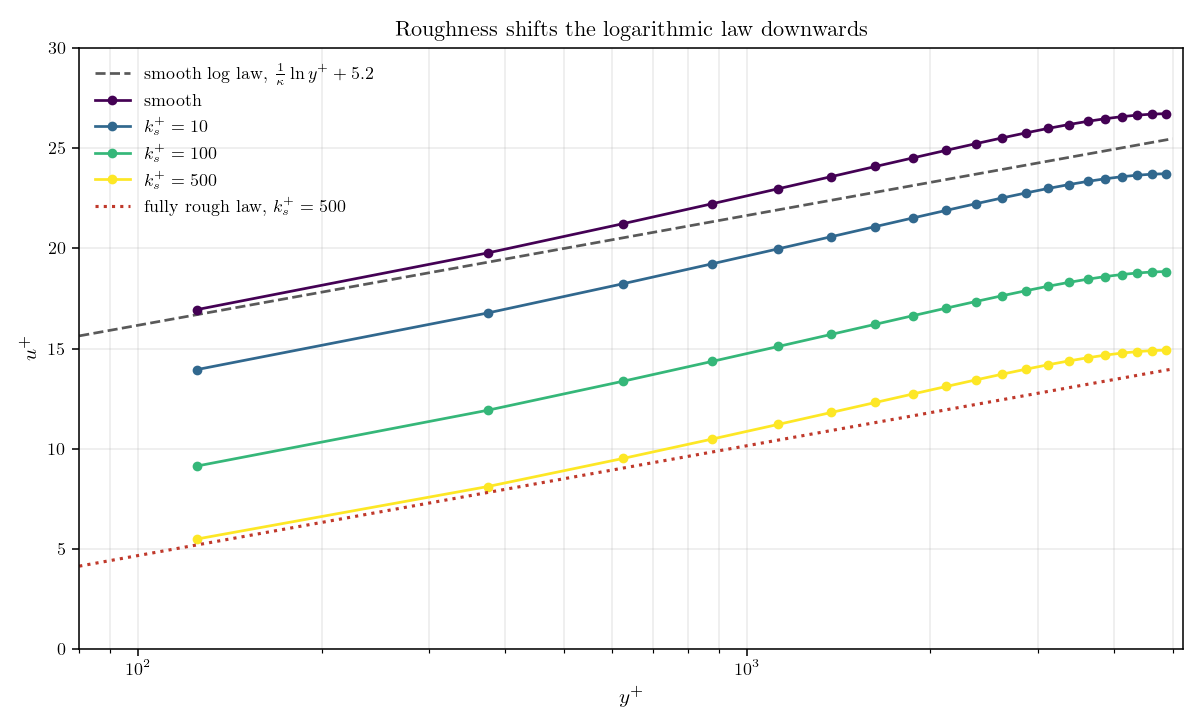

Figure 2: Mean velocity in wall units. Each roughness moves the profile down as a block, without changing its slope, and the roughest case follows the fully rough law over the near-wall part of the channel.

The profiles stay parallel. Roughness does not change the slope of the log law, which belongs to \(\kappa\) alone, it only lowers the intercept. That is the entire content of the model, and it is why one number can stand in for a surface.

The roughness function

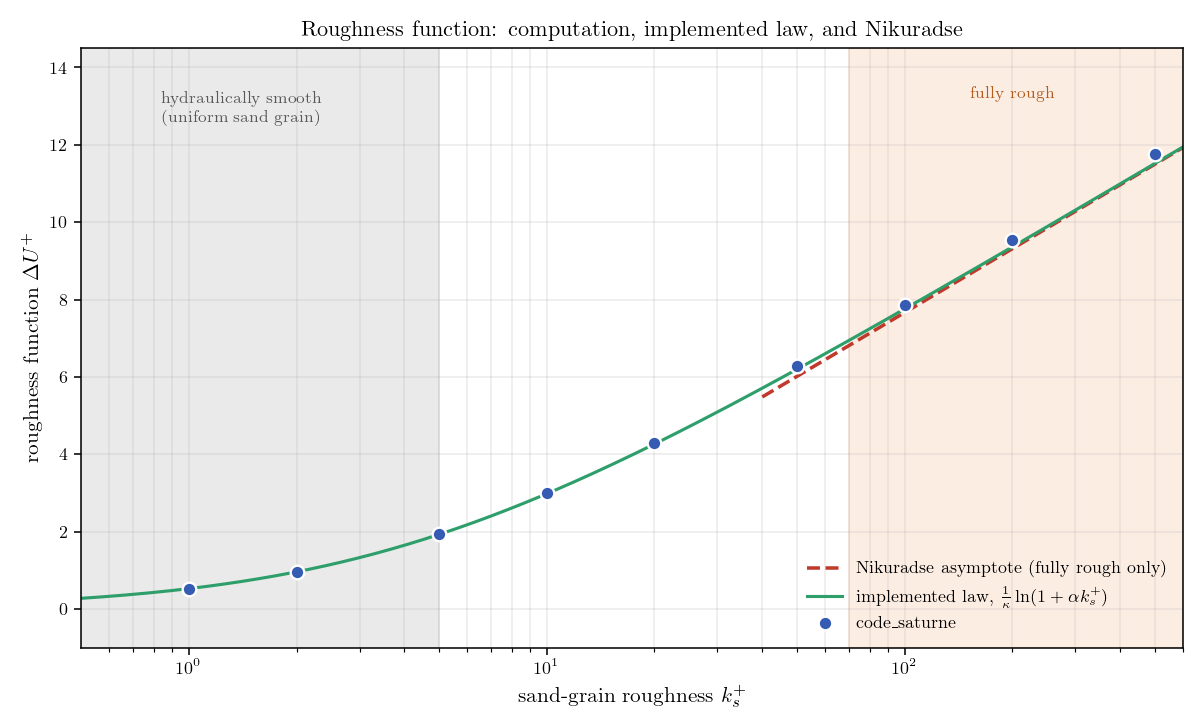

Figure 3: Roughness function against $k_s^+$. The computed points sit on the law the wall function implements, which joins Nikuradse's asymptote in the fully rough regime. The asymptote is drawn only there, since it has no meaning at lower roughness.

\(k_s^+\)	\(U_b^+\)	\(\Delta U^+\)	Implemented law	Nikuradse (fully rough only)
smooth	24.42	0	0
1	23.89	0.53	0.53
2	23.46	0.96	0.97
5	22.49	1.94	1.93
10	21.42	3.00	2.98
20	20.12	4.30	4.27
50	18.15	6.27	6.20	6.01
100	16.55	7.87	7.76	7.66
200	14.89	9.53	9.36	9.32
500	12.66	11.77	11.52	11.50

Two readings of this table matter, and they are different in kind.

The first is a verification: the computed shift reproduces the law the wall function is built on, over the whole sweep. The small residual at the rough end comes from the wall-distance shift, which depends on where the first cell sits; it is a discretisation effect, not a modelling one.

The second is physical. In the fully rough regime the points settle onto Nikuradse's asymptote, which is the result one wants, and which is the only regime where that asymptote means anything. Below it the model transitions monotonically, with no hydraulically smooth plateau: it behaves like Colebrook's commercial pipes rather than Nikuradse's calibrated sand grains, and the friction comparison below shows it follows Colebrook closely there. That is a modelling choice rather than a defect, and a defensible one for engineering surfaces, but it does mean a small roughness is never quite free.

Friction

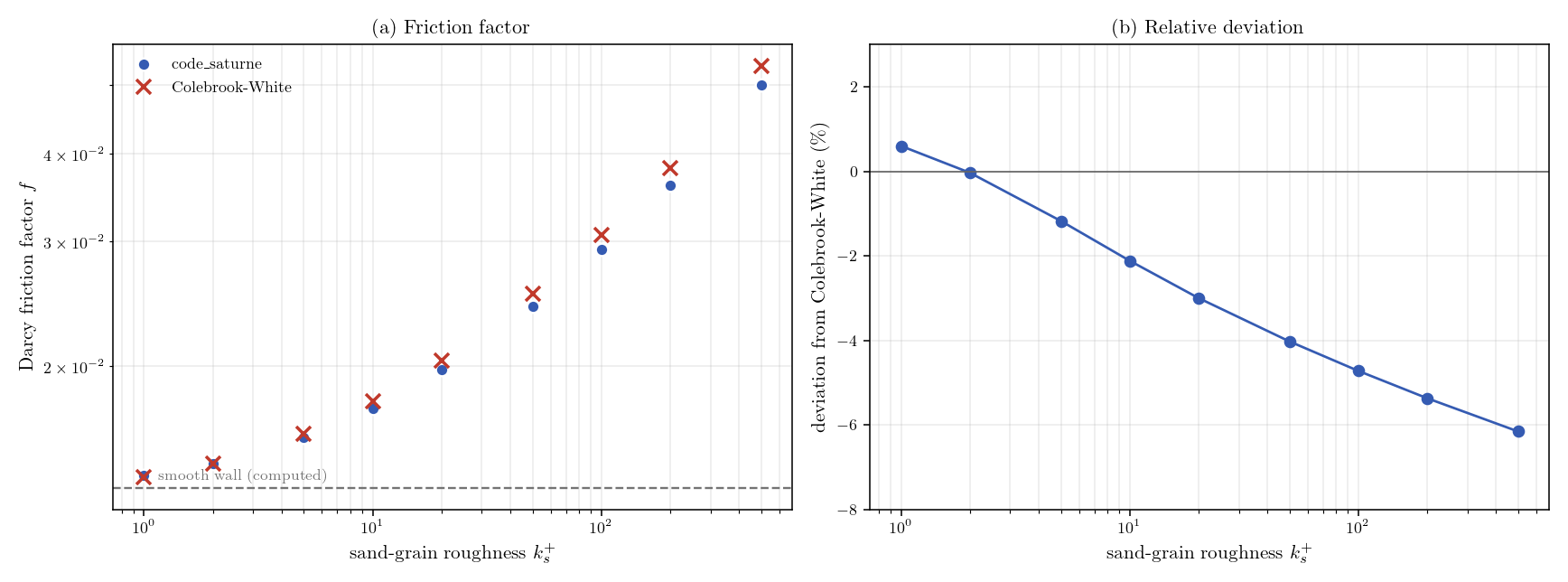

Figure 4: (a) Darcy friction factor, each Colebrook-White cross evaluated at the Reynolds number and relative roughness of the computation it faces, since both change from run to run. (b) The relative deviation.

Agreement with Nikuradse tests the model against the law it was built to reproduce, so an independent check is worth having. The Colebrook-White correlation supplies one: an experimental fit for commercial pipes, applied here to the channel through its hydraulic diameter, and one that covers the transitional regime the Nikuradse asymptote says nothing about. The computed friction is closest to it on smooth and lightly rough walls, which is what supports the reading above, and drifts a few percent low as the wall gets rougher. That drift is expected rather than troubling, since a plane channel is not a pipe and the hydraulic diameter only papers over the difference.

Summary

Wall roughness needs no user routine, but it needs two things right. The value is a roughness length, smaller than the sand-grain height of the standard tables by a factor of about thirty-five, so entering a grain height makes the wall far rougher than intended. And the wall function has to be one that consumes it: several do, several refuse it outright, and one accepts the value and quietly ignores it, which is the failure mode worth remembering because nothing will warn you.

Set up correctly, the model earns its keep. It shifts the logarithmic law downwards without touching its slope, follows Nikuradse's fully rough asymptote closely once the grains are large enough to matter, and tracks the Colebrook friction correlation across the range. Its transition to the smooth wall is monotonic, closer to Colebrook's commercial pipes than to Nikuradse's calibrated sand grains, so a small roughness is never quite free.

Worth stating plainly as well: a single length cannot describe a surface. Two walls with the same \(k_s\) but different grain shape, packing or directionality do not behave alike, and the equivalent sand-grain roughness of a real surface is obtained by experiment, not with a profilometer. The model is only ever as good as the number fed into it.

References

1. code_saturne documentation: https://code-saturne.org/doc/.
2. J. Nikuradse, "Stromungsgesetze in rauhen Rohren", VDI-Forschungsheft 361, 1933 (English translation: NACA TM 1292, 1950).
3. C. F. Colebrook, "Turbulent flow in pipes, with particular reference to the transition region between the smooth and rough pipe laws", Journal of the Institution of Civil Engineers, vol. 11, pp. 133-156, 1939.
4. S. B. Pope, Turbulent Flows, Cambridge University Press, 2000.
