Time Averages (Mean Fields of an Unsteady Wake)

Browse this case on GitHub

A step-by-step tutorial for time averages (temporal moments) in code_saturne: mean fields accumulated in-line by the solver over a chosen time window, configured entirely from the GUI. The carrier flow is the periodic vortex shedding behind a square cylinder at \(Re_D=100\): the instantaneous wake is unsteady and asymmetric while its time average is smooth and symmetric. The computed moment is verified against an offline average of the probe signals, and the shedding Strouhal number against the experimental band of Okajima.

Maintained by Simvia, part of the tutoriel-code_saturne collection.

Learning objectives

After completing this tutorial you will be able to:

  1. Define a time average (mean of a variable) in the GUI, started at a physical time.
  2. Know the subtlety that starting at a physical time requires the iteration start to be disabled (set to -1).
  3. Post-process mean fields next to instantaneous ones (they are ordinary fields, also recorded at probes).
  4. Choose an averaging window from the probe signals (established shedding, whole number of periods).
  5. Verify the moment against an offline average and extract a Strouhal number from a probe spectrum.

Prerequisites

Requirement Detail
code_saturne v9.1
Background Basic notions of unsteady laminar wakes

If code_saturne is not yet installed, build it from the official homepage, pull a ready-to-use Singularity image from the Open Simulation Center, or pull the Simvia Docker image before continuing.

Case files

Inc_Time_Averages/
├── CASE/
│   ├── DATA/
│   │   └── setup.xml          # pre-configured GUI case (holds the time averages)
│   └── SRC/
│       └── cs_user_mesh.cpp   # carves the square cylinder out of the mesh
├── FIGURES/                   # figures used in this README
└── README.md

There is no mesh file: the box is built by code_saturne's internal Cartesian mesher and the square cylinder is carved out of it at run time (cs_mesh_remove_cells_from_selection_criteria, as in Pre_Cell_Removal), the freed faces being tagged obstacle for the wall boundary zone.

Physical model

The flow is laminar, incompressible and truly transient. Air (\(\rho=1.2\ \mathrm{kg\,m^{-3}}\), \(\mu=1.8\times10^{-5}\ \mathrm{Pa\,s}\)) flows at \(U=0.15\ \mathrm{m\,s^{-1}}\) past a square cylinder of side \(D=10\ \mathrm{mm}\):

\[ Re_D=\frac{\rho\,U\,D}{\mu}=100, \]

above the onset of vortex shedding for a square cylinder, so the wake settles into the classical periodic von Karman street with Strouhal number \(St=fD/U\approx0.14\) (Okajima, 1982).

Geometry and boundary conditions

The domain spans \(-6D\le x\le20D\) and \(|y|\le6D\), one cell thick in \(z\), meshed uniformly with \(260\times120\) cells (\(D/10\) resolution). The cylinder is centred at the origin.

Boundary Type Condition
inlet (\(x=-6D\)) Inlet \(U=0.15\ \mathrm{m\,s^{-1}}\)
outlet (\(x=20D\)) Outlet Standard outlet
top, bottom (\(y=\pm6D\)) Symmetry Free-slip lateral boundaries
front / back Symmetry Quasi-2D
cylinder (carved) Wall No slip

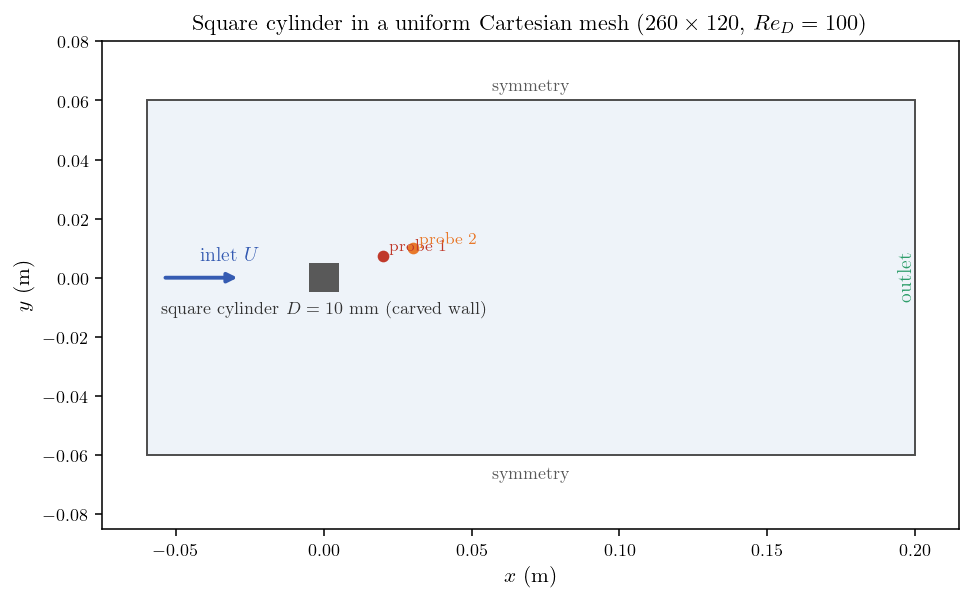

Square cylinder in a uniform Cartesian mesh with boundary conditions and the two wake probes.
Figure 1: Domain and boundary conditions. Two probes record the wake at every time step.

The time averages (the feature)

Two temporal moments are declared in the GUI (Calculation control, Time averages), which stores in setup.xml:

<time_averages>
  <time_average id="1" name="mean_velocity" label="mean_velocity">
    <var_prop name="velocity"/>
    <time_step_start>-1</time_step_start>
    <time_start>15.0</time_start>
  </time_average>
  <time_average id="2" name="mean_pressure" label="mean_pressure">
    <var_prop name="pressure"/>
    <time_step_start>-1</time_step_start>
    <time_start>15.0</time_start>
  </time_average>
</time_averages>

The averaging starts at \(t=15\ \mathrm{s}\), once the shedding is fully established, and runs to the end (30 s, about 32 shedding periods). One subtlety is worth knowing: starting at a physical time requires time_step_start = -1; if the iteration start is left at its default of 0 it takes precedence and the average silently runs from \(t=0\), polluting the mean with the initial transient.

The resulting mean_velocity and mean_pressure are ordinary fields: they are written by the EnSight writer and recorded at the probes (monitoring/probes_mean_*.csv) like any other variable.

Numerical setup

Setting Value
Time scheme True transient, fixed \(\Delta t=0.004\ \mathrm{s}\)
Time steps 7500 (30 s, about 64 shedding periods)
Velocity-pressure algorithm SIMPLEC
Turbulence Off (laminar)

Running the simulation

From the tutorial directory:

cd CASE
code_saturne run              # serial
code_saturne run --n 4        # parallel (4 MPI ranks)

The user routine in CASE/SRC/ (mesh carving) is compiled automatically. Each run creates CASE/RESU/<id>/ with run_solver.log, monitoring/ (probe histories at every step, including the moments) and postprocessing/.

Results and verification

Instantaneous vs mean field

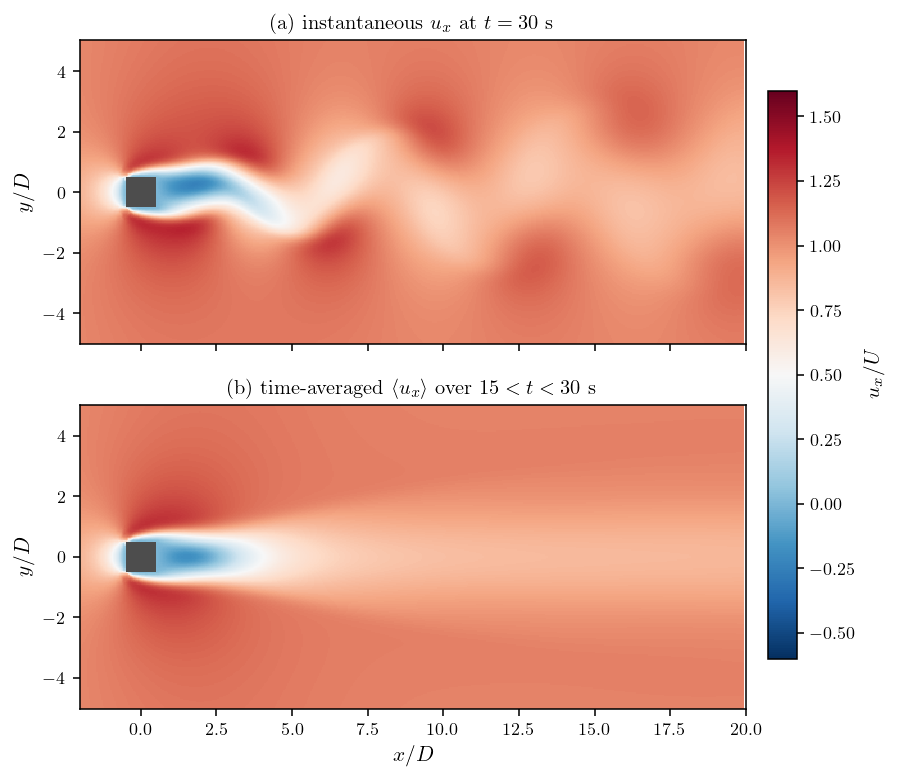

Instantaneous streamwise velocity showing the alternating vortex street, and the smooth symmetric time-averaged field.
Figure 2: (a) Instantaneous $u_x$ at $t=30$ s: the alternating vortex street makes the wake asymmetric at every instant. (b) The time average over $15

The wake asymmetry \(|u_x(y)-u_x(-y)|/U\) averages 0.11 on the instantaneous field and 0.0008 on the mean field: the 32-period average restores the symmetry of the geometry to 0.1 percent.

The moment equals the true average

The moments are recorded at the probes, at the same location and with the same convention as the instantaneous signals, which allows an exact check: the final value of mean_velocity at probe 2 is compared with the offline average of the Velocity signal over the accumulation steps (\(15<t\le30\) s):

Quantity Value
GUI moment at probe 2 0.131459 m/s
Offline average of the probe signal 0.131459 m/s
Difference \(1.7\times10^{-9}\) m/s

Strouhal number

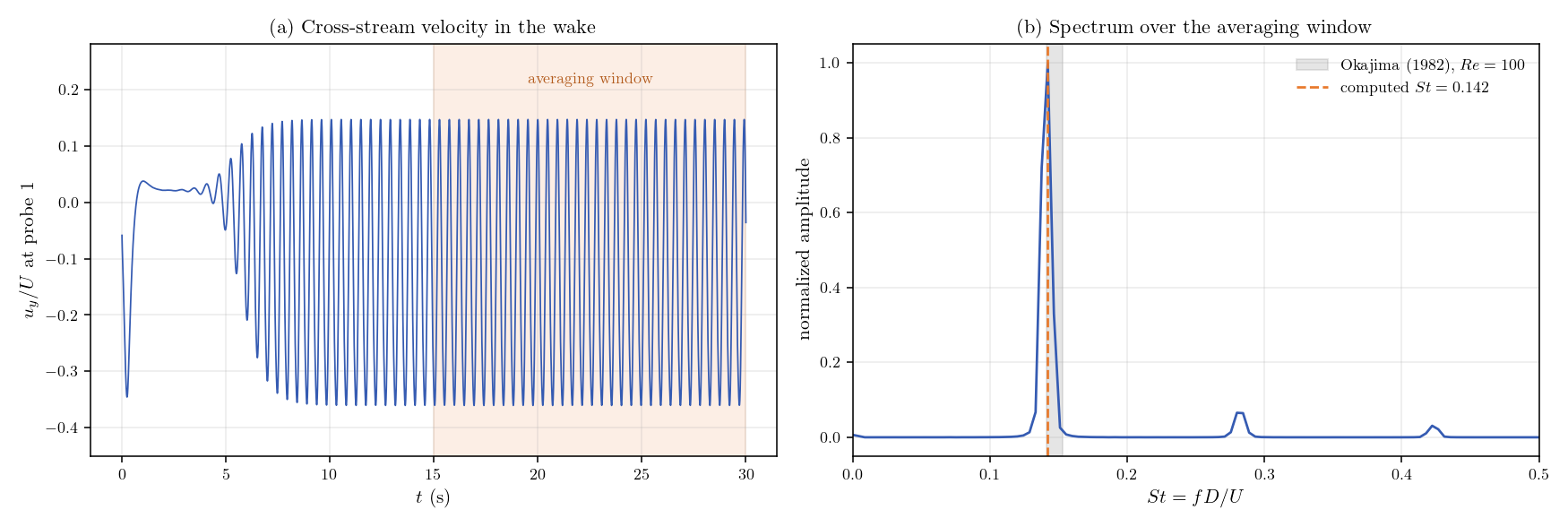

Cross-stream velocity signal with the averaging window, and its spectrum with the Strouhal peak in the Okajima band.
Figure 3: (a) Cross-stream velocity at probe 1: the shedding is fully periodic well before the averaging window. (b) Spectrum over the window: the peak gives \(St=0.142\), inside the experimental band of Okajima (1982), 0.141 to 0.153 at \(Re=100\).

Summary

This tutorial computed in-line time averages of an unsteady wake: the vortex street behind a square cylinder at \(Re_D=100\), carved out of a built-in Cartesian mesh. The GUI moments, started at a physical time (with the time_step_start = -1 subtlety made explicit), reproduce the offline average of the probe signals to \(10^{-9}\), turn the asymmetric instantaneous wake into a symmetric mean field, and the shedding Strouhal number matches the Okajima band. Time averages are the standard tool for extracting mean quantities from every unsteady calculation (LES, vortex shedding, sloshing) without storing and re-processing full time series.

References

  1. A. Okajima, "Strouhal numbers of rectangular cylinders", Journal of Fluid Mechanics, vol. 123, pp. 379-398, 1982.
  2. code_saturne documentation: https://code-saturne.org/doc/.

Authors

Simvia - Questions, remarks and requests are welcome.
