Turbulent Flat Plate (Zero Pressure Gradient)

Browse this case on GitHub

A step-by-step tutorial for simulating the incompressible turbulent boundary layer over a flat plate with code_saturne, using the Spalart-Allmaras (SA) RANS model. Results are verified against reference data from the NASA Langley Turbulence Modeling Resource (TMR).

Maintained by Simvia, part of the tutoriel-code_saturne collection.

Learning objectives

After completing this tutorial you will be able to:

  1. Set up an incompressible, steady RANS simulation in code_saturne from the GUI.
  2. Configure the Spalart-Allmaras turbulence model and consistent freestream values.
  3. Apply inlet / outlet / symmetry / no-slip wall boundary conditions on a structured mesh.
  4. Drive a steady solution with local (pseudo) time-stepping and the SIMPLEC coupling.
  5. Run the case in serial or parallel and locate the solver outputs (log, probes, EnSight fields).

Prerequisites

Requirement Detail
code_saturne v9.1
Background Basic notions of RANS turbulence modelling and boundary-layer theory

If code_saturne is not yet installed, build it from the official homepage, pull a ready-to-use Singularity image from the Open Simulation Center, or pull the Simvia Docker image before continuing.

Case files

Inc_Turbulent_Plate/
├── CASE/
│   ├── DATA/
│   │   └── setup.xml          # pre-configured GUI case
│   └── SRC/
│       └── cs_user_parameters.cpp   # user routine: sets the SA von Karman constant
├── FIGURES/                   # figures used in this README
└── README.md

Physical model

The flow is steady, incompressible and fully turbulent, governed by the Reynolds-Averaged Navier-Stokes (RANS) equations closed with the one-equation Spalart-Allmaras model for the modified eddy viscosity \(\tilde{\nu}\):

\[ \nabla\cdot\mathbf{u}=0,\qquad \rho\,(\mathbf{u}\cdot\nabla)\mathbf{u} = -\nabla p + \nabla\cdot\!\big[(\mu+\mu_t)\,(\nabla\mathbf{u}+\nabla\mathbf{u}^{\mathsf T})\big]. \]

The eddy viscosity is \(\mu_t=\rho\,\tilde{\nu}\,f_{v1}\), with \(\tilde{\nu}\) obtained from its own transport equation. The case is run with the incompressible solver, the freestream Mach number (\(M_\infty\approx0.2\)) is low enough that compressibility is negligible for this verification exercise.

Flow parameters

Quantity Symbol Value Source in setup.xml
Density \(\rho\) \(1.32905\ \mathrm{kg\,m^{-3}}\) physical_properties/density
Dynamic viscosity \(\mu\) \(1.84592\times10^{-5}\ \mathrm{Pa\,s}\) molecular_viscosity
Kinematic viscosity \(\nu=\mu/\rho\) \(1.389\times10^{-5}\ \mathrm{m^2\,s^{-1}}\) derived
Inlet velocity \(U_\infty\) \(69.4448\ \mathrm{m\,s^{-1}}\) inlet/velocity_pressure/norm
Reference length \(L\) \(1\ \mathrm{m}\) (geometry)
Reynolds number \(Re_L\) \(5\times10^{6}\) derived (see below)
Freestream \(\tilde{\nu}\) \(\tilde{\nu}_\infty\) \(4.2\times10^{-5}\ \mathrm{m^2\,s^{-1}}\) turbulence/formula

The Reynolds number is recovered directly from the prescribed properties:

\[ Re_L=\frac{\rho\,U_\infty\,L}{\mu} =\frac{1.32905\times 69.4448\times 1}{1.84592\times10^{-5}}\approx 5\times10^{6}. \]

The SA freestream value follows the standard recommendation \(\tilde{\nu}_\infty=3\nu\approx4.2\times10^{-5}\ \mathrm{m^2\,s^{-1}}\), which yields a small but non-trivial freestream turbulent viscosity and matches the TMR setup.

Geometry and boundary conditions

The plate spans \(0\le x\le 2\ \mathrm{m}\) with its leading edge at the origin. Upstream of the leading edge (\(-0.33\le x\le 0\)) a symmetry plane removes the inlet boundary layer so that it starts developing exactly at \(x=0\). The domain is \(1\ \mathrm{m}\) tall.

Boundary Location Nature Prescribed value Zone id
inlet left (\(x=-0.33\)) Inlet \(U_\infty=69.4448\ \mathrm{m\,s^{-1}}\), \(\tilde{\nu}=4.2\times10^{-5}\) 100
outlet1 right (\(x=2\)) Outlet \(\partial\mathbf{u}/\partial n=0\), \(p\) Dirichlet 200
outlet2 top (\(y=1\)) Outlet (free-stream) \(\partial\mathbf{u}/\partial n=0\), \(p\) Dirichlet 300
sym bottom, \(x<0\) Symmetry (none) 400
wall bottom, \(0\le x\le2\) No-slip wall \(\mathbf{u}=\mathbf{0}\) 500
front spanwise plane (\(z=0\)) Symmetry (none) 600
back spanwise plane (\(z=1\)) Symmetry (none) 601

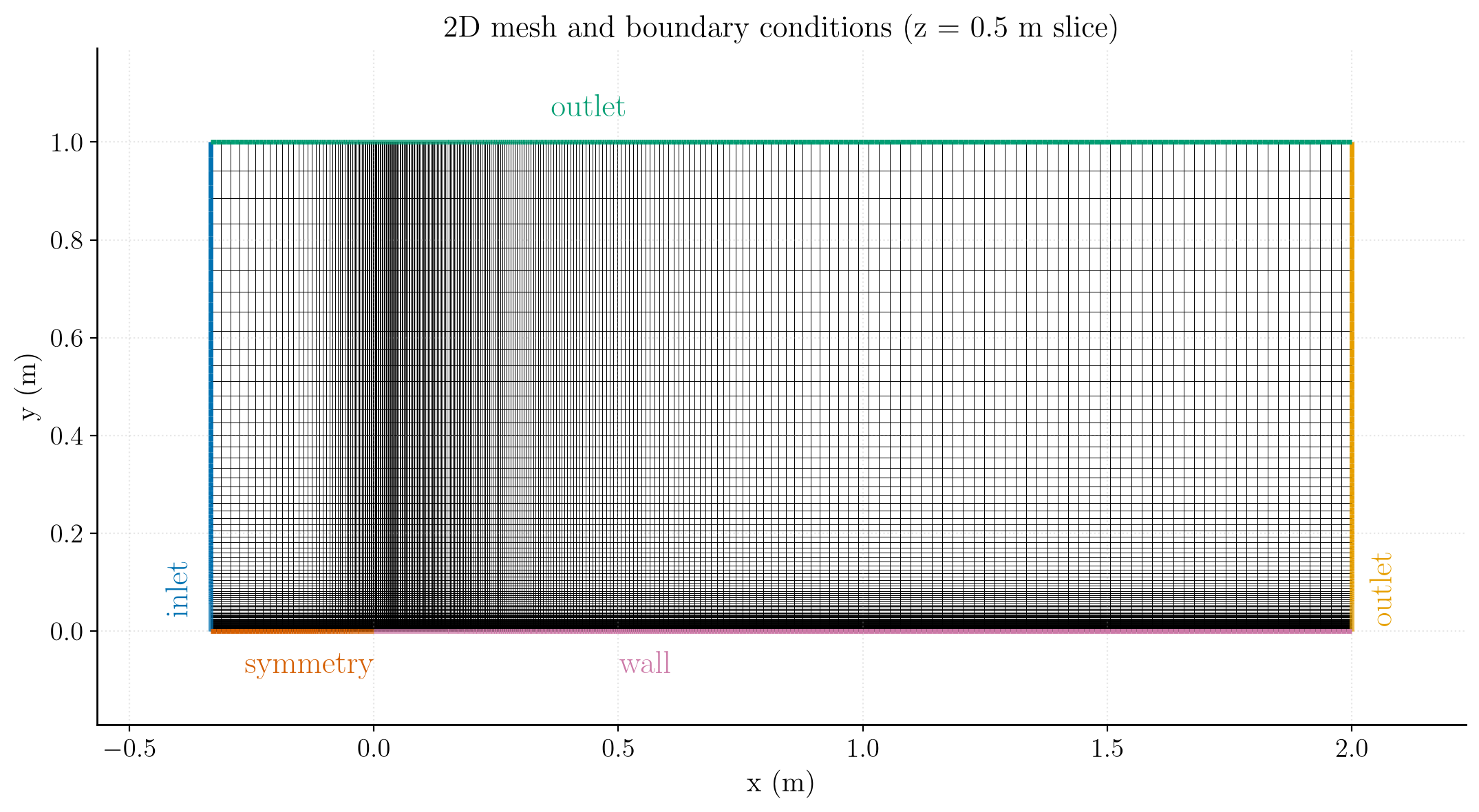

2D mesh of the flat-plate domain colored by boundary condition: inlet (left), outlets (top and right), symmetry (bottom upstream of the leading edge) and no-slip wall (bottom, along the plate).
Figure 1: Mesh and boundary conditions (z = 0.5 m slice): inlet (blue), outlets (green/yellow), symmetry (orange) and no-slip wall (pink). The mesh is strongly refined toward the wall to resolve the viscous sublayer ($y^+\lesssim 1$).

The figure is illustrative (coarsened). The grid is built directly by code_saturne's built-in cartesian mesher (defined in setup.xml, no external mesh file): 546 x 67 cells (one cell thick in \(z\)). The wall-normal direction uses a geometric law with growth ratio 1.2 from the wall, giving a first-cell height of about \(1\times10^{-6}\ \mathrm{m}\) (\(y^+\approx0.2\), wall-resolved); the streamwise direction is uniform with a node at the leading edge. The two spanwise planes (front/back) carry a symmetry condition, so the computation is effectively two-dimensional.

Numerical setup

Setting Value Rationale
Velocity-pressure coupling SIMPLEC Robust segregated coupling for steady incompressible flow
Time-stepping Local (pseudo) time step Accelerates convergence to steady state by using a per-cell time step
Reference time step \(\Delta t_\mathrm{ref}=10^{-5}\ \mathrm{s}\) Seed value, bounded by min/max factors \([0.1,\,1000]\)
Max Courant number 20 Caps the local time step away from the wall
Iterations 3000 Steady state reached well within this budget
Turbulence model Spalart-Allmaras One-equation model, well suited to attached wall-bounded flows
Initialization \(\mathbf{u}=(U_\infty,0,0)\), \(\tilde{\nu}=4.2\times10^{-5}\) Freestream start consistent with the inlet

Four monitoring probes track convergence inside the boundary layer at \(x=0.5\) and \(x=1.0\ \mathrm{m}\), placed close to the wall at \(y=0.0005\ \mathrm{m}\) and \(y=0.002\ \mathrm{m}\). Sitting in the near-wall region, they are sensitive indicators of when the boundary layer has reached steady state.

Running the simulation

The commands below start from the tutorial directory:

cd Inc_Turbulent_Plate/

Option A: Graphical interface

code_saturne gui CASE/DATA/setup.xml &

The GUI opens the pre-configured setup.xml. Review the setup if you wish, then launch the run with the gear (Run) button in the toolbar. To run in parallel, set the number of processes under Calculation management > Performance settings before launching.

Option B: Command line

The command-line launcher is run from inside the case directory:

cd CASE

# serial
code_saturne run

# parallel (e.g. 4 MPI ranks)
code_saturne run --n 4

The mesh is light (about 37 k cells), so the case runs quickly; parallel is optional but still convenient.

Each run creates a time-stamped directory CASE/RESU/<YYYYMMDD-HHMM>/ containing:

  • run_solver.log: solver log and residual history,
  • monitoring/: probe time series (probes_*.csv),
  • postprocessing/: volume and boundary fields in EnSight Gold format.

Results and verification

The figures below illustrate the converged solution and compare it against reference data from the NASA Langley TMR database. The two quantities of interest are the boundary-layer velocity profile (taken at \(x=0.97\ \mathrm{m}\) and normalized by \(U_\infty\)) and the wall skin-friction coefficient:

\[ C_f=\frac{\tau_w}{\tfrac{1}{2}\,\rho\,U_\infty^{2}}, \]

where \(\tau_w\) is the wall shear stress.

Velocity profile

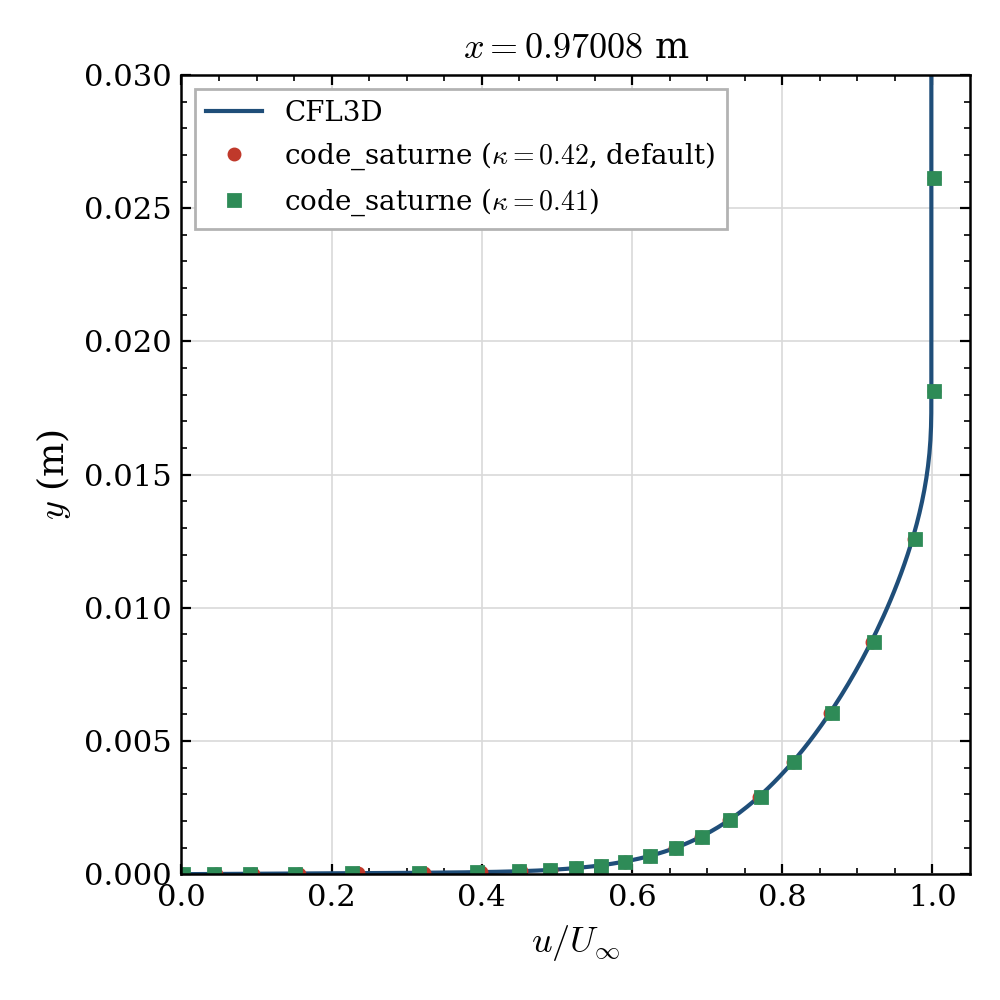

Boundary-layer velocity profile u/Uinf versus wall-normal distance at x = 0.97 m: code_saturne overlays the CFL3D reference almost exactly.
Figure 2: Boundary-layer velocity profile at x = 0.97 m. code_saturne (both $\kappa=0.42$ and $\kappa=0.41$) overlays the CFL3D reference (blue) across the whole boundary layer.

Skin-friction coefficient

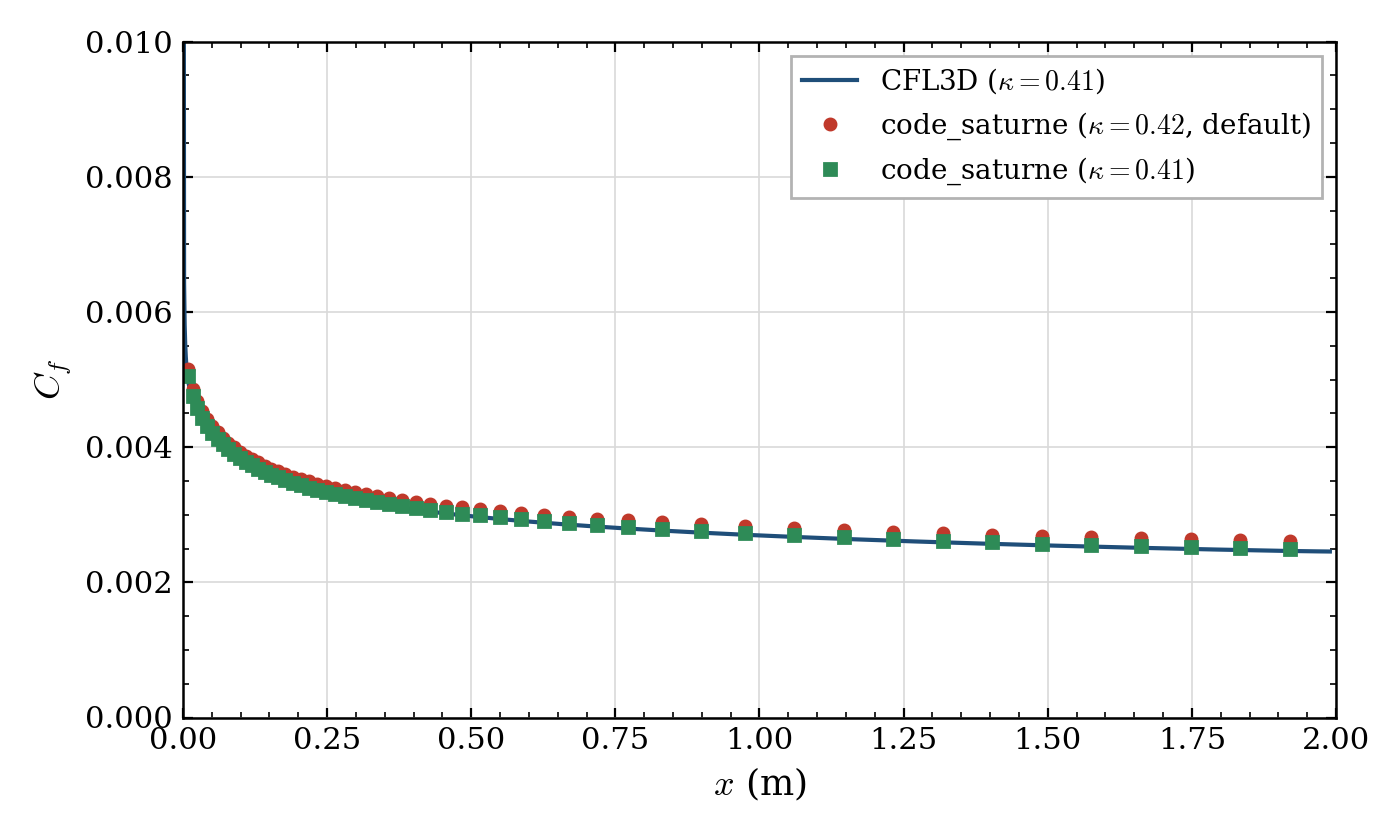

Skin-friction coefficient Cf along the plate: code_saturne with the default kappa=0.42 lies a few percent above CFL3D, while kappa=0.41 lands on the reference.
Figure 3: Skin-friction coefficient along the plate. With the default $\kappa = 0.42$ (red), code_saturne lies a few percent above the CFL3D reference (blue), forcing the SA-standard $\kappa = 0.41$ (green) brings it onto the reference. See the discussion below.

The figure compares code_saturne against CFL3D for two values of the Spalart-Allmaras von Karman constant \(\kappa\):

  • \(\kappa = 0.42\) (code_saturne default), red. With the built-in constant, \(C_f\) sits about 3 to 4% above the reference. The standard SA model used by the NASA codes uses \(\kappa = 0.41\), and through the log law this difference sets the offset.
  • \(\kappa = 0.41\) (green). The case ships with a small user routine, CASE/SRC/cs_user_parameters.cpp, that overrides the default to the SA-standard value. \(C_f\) then lands on CFL3D (agreement to within 0.1% at \(x = 0.97\) m). This file doubles as a minimal example of how to customize a model constant in code_saturne.

The velocity profile and the law of the wall match the reference across the boundary layer, confirming a correctly resolved SA simulation.

Law of the wall

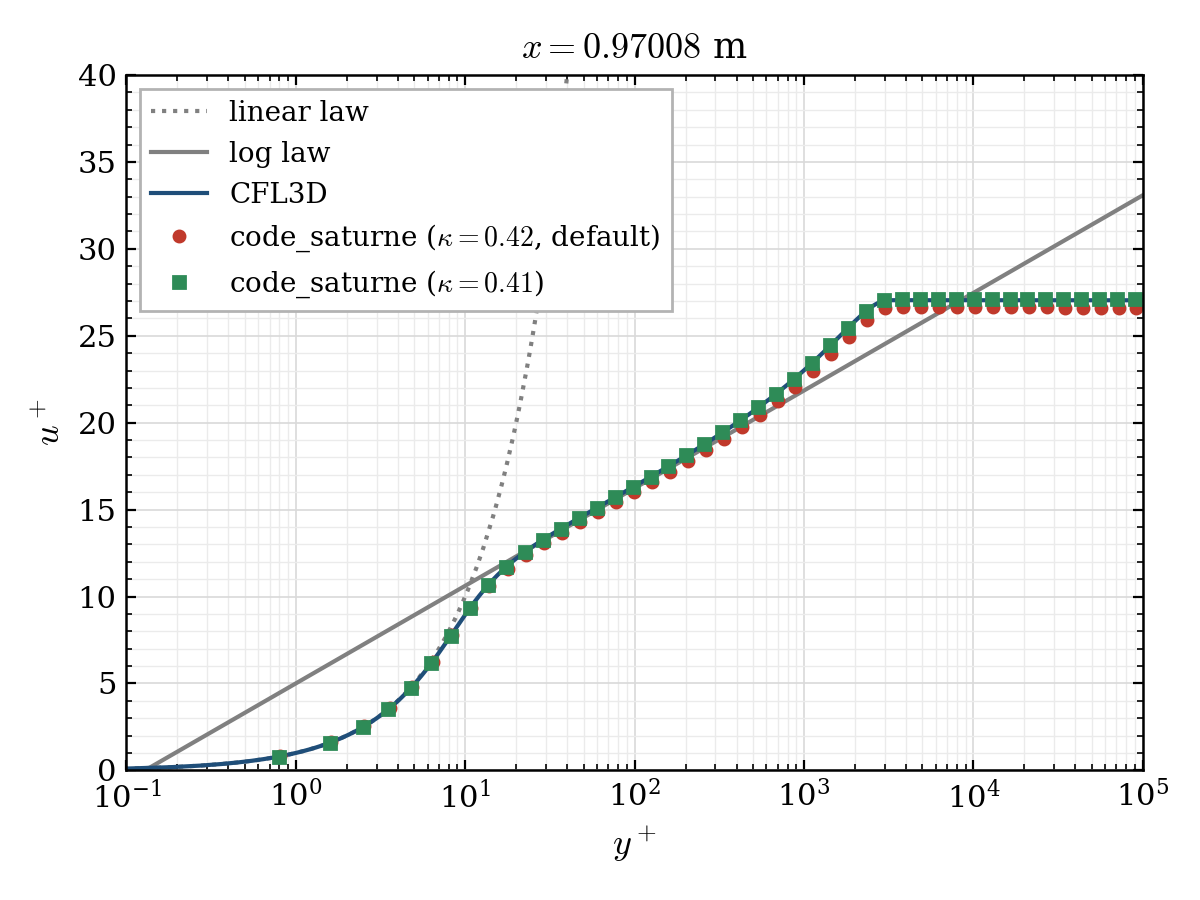

u+ versus y+ at x = 0.97 m: code_saturne follows the linear law in the viscous sublayer and the log law, matching the CFL3D reference.
Figure 4: Wall-unit velocity profile at x = 0.97 m. code_saturne follows the linear law in the viscous sublayer ($y^+\lesssim 5$) then the log law. The near-wall resolution ($y^+<1$) is confirmed by the points reaching down to $y^+\approx0.2$. In the wake, $\kappa=0.41$ (green) reaches the CFL3D plateau, while the default $\kappa=0.42$ (red) sits slightly below it.

Summary

This tutorial set up and validated an incompressible turbulent flat-plate simulation in code_saturne with the Spalart-Allmaras model. The velocity profile and the law of the wall match the CFL3D reference across the boundary layer, and the skin-friction coefficient agrees to within a few percent, the small offset being fully explained by the model constant (\(\kappa\)) and the Mach number of the reference. This case is a good starting point for more complex attached wall-bounded RANS simulations.

References

Authors

Simvia - Questions, remarks and requests are welcome.
