Kelvin-Helmholtz Instability (VOF)

Browse this case on GitHub

A step-by-step tutorial for simulating the Kelvin-Helmholtz instability with the VOF (Volume of Fluid) model of code_saturne: two fluid layers in opposite motion destabilize at their interface, and the seeded perturbation grows into the classical rolling billows. The case is a compact demonstration of a two-phase VOF setup: per-phase properties, user initialization of the void fraction, and streamwise periodicity.

Maintained by Simvia, part of the tutoriel-code_saturne collection.

Learning objectives

After completing this tutorial you will be able to:

  1. Enable the VOF homogeneous two-phase model (no mass transfer) and set per-phase properties.
  2. Initialize the void fraction and the velocity field with a cs_user_initialization.cpp user routine.
  3. Set up a streamwise translational periodicity.
  4. Run a time-accurate two-phase transient with a fixed time step.
  5. Run the case and visualize the void fraction field (roll-up of the interface).

Prerequisites

Requirement Detail
code_saturne v9.1
Background Basic notions of hydrodynamic stability (shear instabilities)

If code_saturne is not yet installed, build it from the official homepage, pull a ready-to-use Singularity image from the Open Simulation Center, or pull the Simvia Docker image before continuing.

Case files

Vof_Kelvin_Helmholtz/
├── CASE/
│   ├── DATA/
│   │   └── setup.xml                    # pre-configured GUI case
│   └── SRC/
│       └── cs_user_initialization.cpp   # shear profile + wavy interface
├── FIGURES/                             # figures used in this README
└── README.md

There is no MESH directory: the mesh is generated at run time by the built-in cartesian mesher (\(128 \times 64 \times 1\) cells on \([0,1] \times [0.25, 0.75]\)).

Physical model

The VOF homogeneous model solves a single set of incompressible momentum equations for the mixture, plus one transport equation for the void fraction \(\alpha\) (fraction of phase 1). The interface is not tracked explicitly: it is the thin region where \(\alpha\) switches from 0 to 1, and the \(\alpha = 0.5\) contour used in the post-processing below is a diagnostic, not a solved variable:

\[ \frac{\partial \alpha}{\partial t} + \mathbf{u} \cdot \nabla \alpha = 0, \qquad \rho = (1-\alpha)\,\rho_0 + \alpha\,\rho_1, \qquad \mu = (1-\alpha)\,\mu_0 + \alpha\,\mu_1 \]

The flow is laminar, without gravity and without surface tension: the only physics at play is the shear instability.

The initial state, set by cs_user_initialization.cpp, is a hyperbolic-tangent shear layer with a sinusoidally displaced interface:

\[ u(y) = U_0 \tanh\!\left(\frac{y - y_0}{\delta}\right), \qquad \alpha(x, y) = \frac{1}{2}\left[1 + \tanh\!\left(\frac{y - y_0 - \varepsilon \sin(k x)}{\delta}\right)\right] \]

with the seeded mode \(k = 4\pi\) (two wavelengths in the periodic box). The shear destabilizes the perturbed interface, which rolls up into the classical Kelvin-Helmholtz billows.

Flow parameters

Quantity Symbol Value Source in setup.xml / SRC
Phase densities \(\rho_0\), \(\rho_1\) \(1.0\), \(2.0\) density (per-phase values)
Phase viscosities \(\mu_0\), \(\mu_1\) \(10^{-4}\), \(10^{-4}\) molecular_viscosity
Surface tension, gravity \(\sigma_s\), \(g\) \(0\), \(0\) surface_tension, gravity
Shear velocity \(\pm U_0\) \(\pm 0.5\ \mathrm{m\,s^{-1}}\) cs_user_initialization.cpp
Shear layer thickness \(\delta\) \(0.01\) m cs_user_initialization.cpp
Seeded mode, amplitude \(k\), \(\varepsilon\) \(4\pi\), \(0.005\) m cs_user_initialization.cpp
Domain \([0,1] \times [0.25,0.75]\), \(128 \times 64\) cells mesh_cartesian
Time step \(\Delta t\) \(0.004\) s (fixed, CFL \(\approx 0.26\)) time_step_ref
Final time \(t_{end}\) \(10\) s maximum_time

Geometry and boundary conditions

The domain is a thin box, periodic in \(x\) (the two lateral faces are joined by a translational periodicity, exactly as in the streamwise periodic tutorial) with symmetry planes at the top and bottom, far enough from the interface not to influence the instability. The two spanwise (\(xy\)) planes carry a symmetry condition, so the computation is effectively two-dimensional.

Boundary Location Nature Zone
periodic pair \(x = 0\) and \(x = 1\) Periodicity (translation) X0, X1
Y0, Y1 \(y = 0.25\), \(y = 0.75\) Symmetry Y0, Y1
Z0, Z1 spanwise planes Symmetry Z0, Z1

The initial state is set by SRC/cs_user_initialization.cpp, compiled automatically at the beginning of the run (the routine does not overwrite the fields on a restart).

Numerical setup

Setting Value Rationale
Velocity-pressure coupling SIMPLEC Standard segregated coupling
Two-phase model VOF, no mass transfer Single transport equation for the void fraction; the interface is implicit (the thin region where alpha switches from 0 to 1)
Time-stepping Fixed \(\Delta t = 0.004\) s Time-accurate transient, CFL \(\approx 0.26\)
Turbulence none (laminar) Laminar two-phase demonstration
Output frequency every \(0.05\) s Time-resolved series to animate the roll-up

Running the simulation

The commands below start from the tutorial directory:

cd Vof_Kelvin_Helmholtz/

Option A: Graphical interface

code_saturne gui CASE/DATA/setup.xml &

The GUI opens the pre-configured setup.xml. Review the setup if you wish, then launch the run with the gear (Run) button in the toolbar.

Option B: Command line

The command-line launcher is run from inside the case directory:

cd CASE

# serial
code_saturne run

# parallel (e.g. 2 MPI ranks)
code_saturne run --n 2

The user routine SRC/cs_user_initialization.cpp is compiled automatically at the beginning of the run.

Each run creates a time-stamped directory CASE/RESU/<YYYYMMDD-HHMM>/ containing:

  • run_solver.log: solver log,
  • postprocessing/: time series of volume fields in EnSight Gold format.

Results

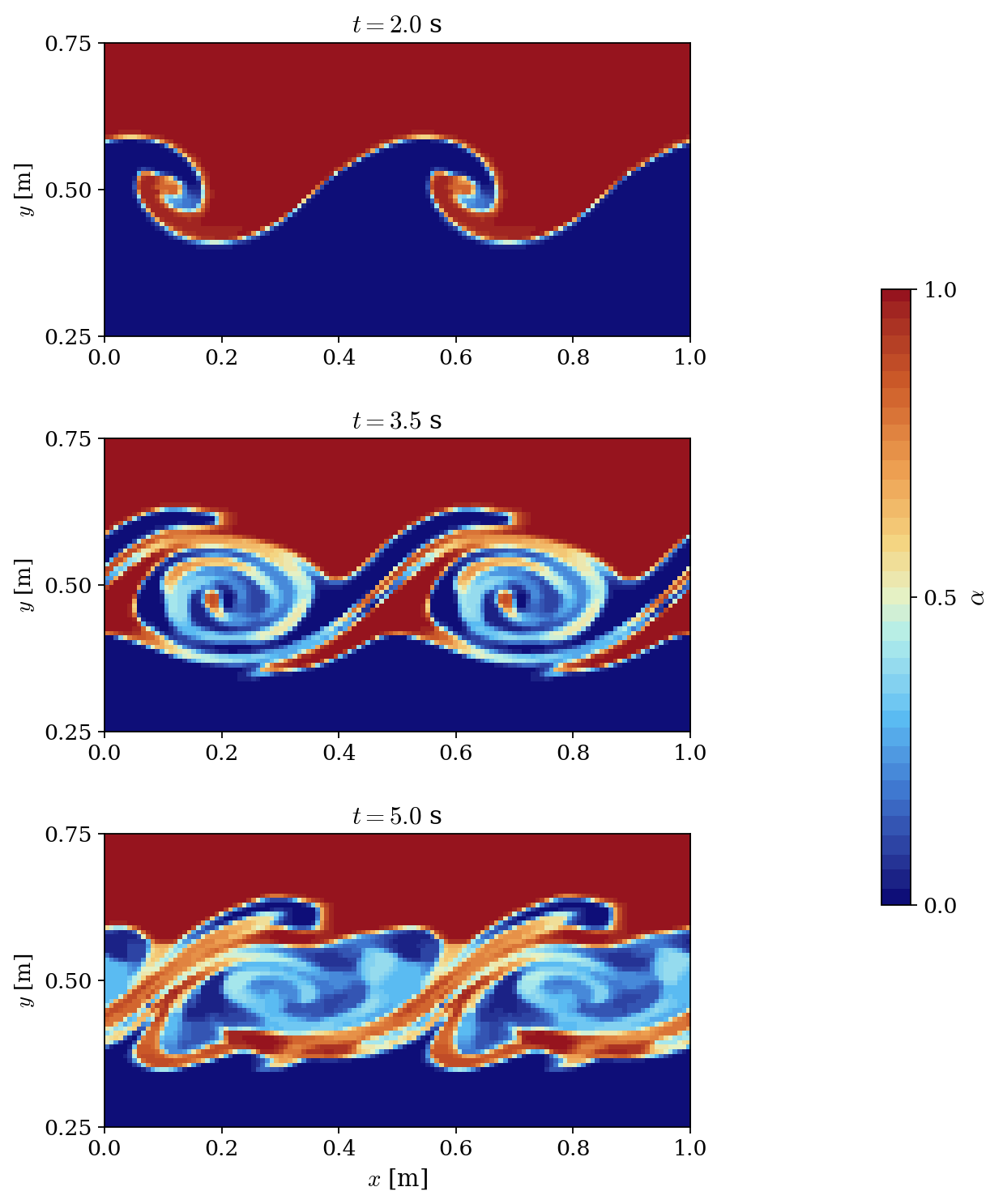

Void fraction fields at t = 2.0, 3.5 and 5.0 s showing the Kelvin-Helmholtz billows.
Figure 1: Void fraction $\alpha$ at $t = 2.0$, $3.5$ and $5.0$ s: the seeded perturbation grows into two billows, rolls up into spirals, then mixes the two phases.

Summary

This tutorial set up a two-phase Kelvin-Helmholtz instability with the VOF model of code_saturne: per-phase properties, user-routine initialization of the void fraction and of the shear profile, and streamwise periodicity. The seeded perturbation grows and rolls up into the classical billows, mixing the two phases. This case is the entry point of the VOF series.

References

  • H. von Helmholtz. On discontinuous movements of fluids, Phil. Mag., 36:337-346, 1868.
  • Lord Kelvin (W. Thomson). Hydrokinetic solutions and observations, Phil. Mag., 42:362-377, 1871.
  • code_saturne documentation

Authors

Simvia - Questions, remarks and requests are welcome.
